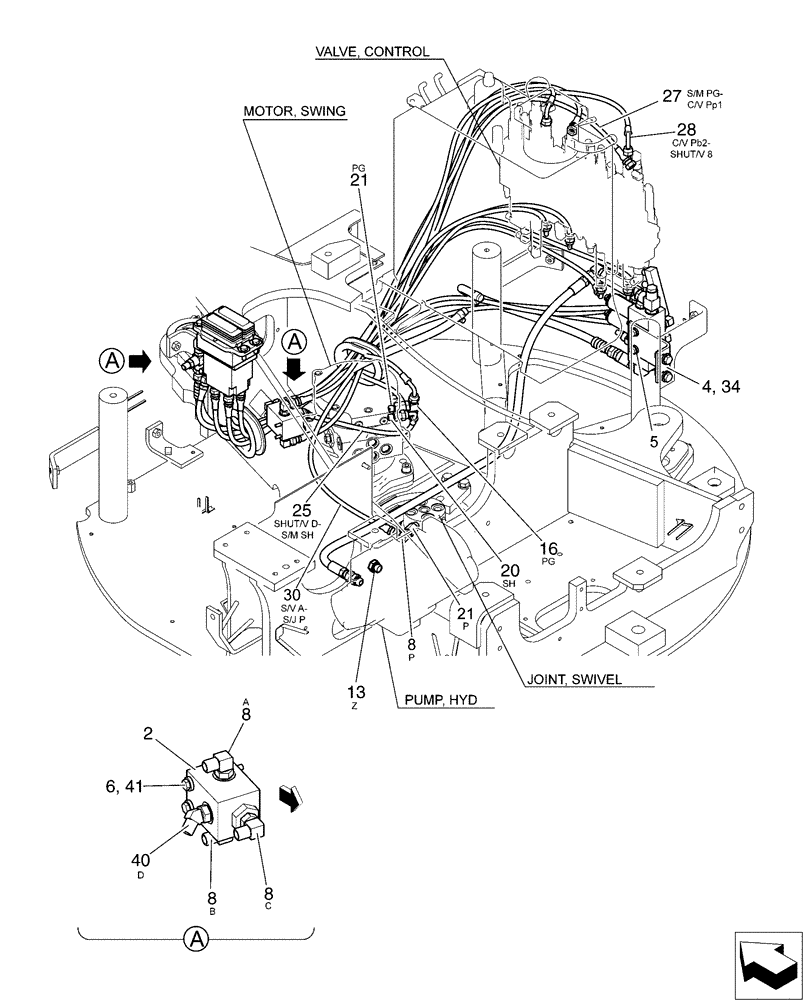

Запчасти Case CX31B (01-061[01]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS

4

PW64H01072P1

BRACKET

1шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

2шт.

6

ZS18C06065

SCREW,Hex, M6 x 65mm

2шт.

8

HH35S04004G1

90 ELBOW

6шт.

13

ZE72X04000

PLUG

2шт.

16

HH55L04004G2

TEE

1шт.

20

HH25S04004G1

HYD CONNECTOR

1шт.

21

2444Z2525

HYD CONNECTOR

3шт.

25

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

27

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

28

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

30

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

34

ZM73C10030

BOLT,M10x30mm - Course Thread

2шт.

40

HH45S04004G1

45 ELBOW

1шт.

41

ZW16H06000

WASHER

2шт.
