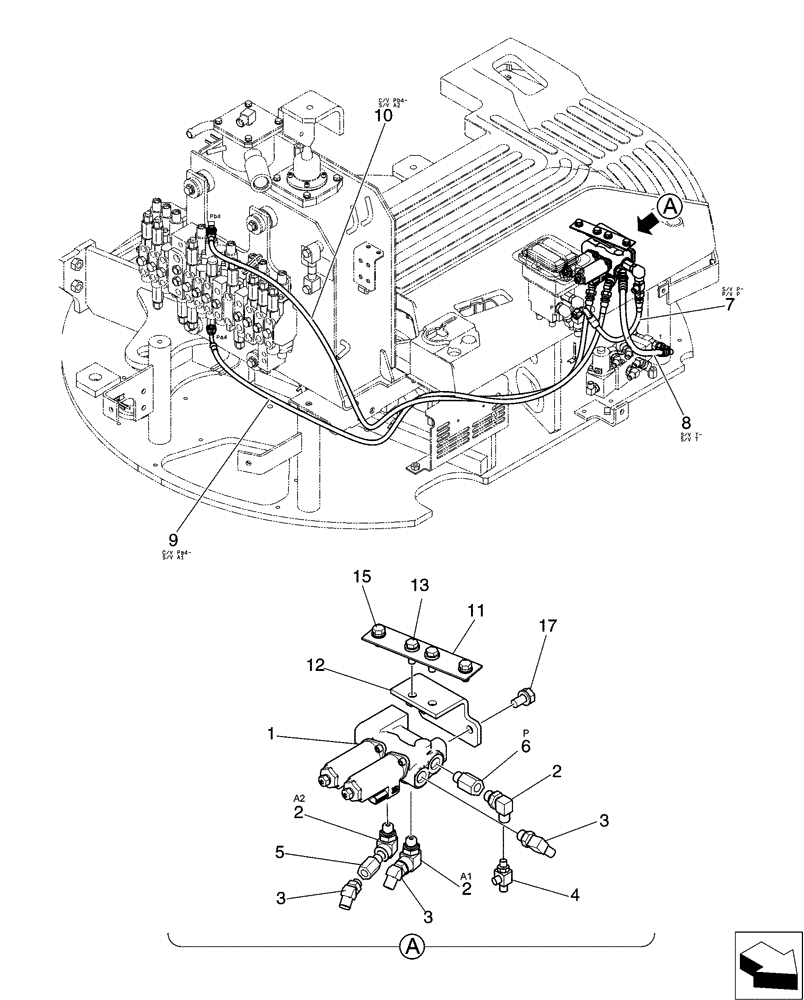

Запчасти Case CX31B (01-060[01]) - CONTROL LINES, VALVE, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PW64H00084F1

Valve (Angle Dozer)

1шт.

1

PW35V00002F1

SOLENOID VALVE

Assy. (Used Nibbler Open/Close Proportional, Revolution Left/Right Proportional, Extra Proportional Left/Right)

1шт.

2

2444Z2894

90 ELBOW

3шт.

3

HH45S04004G1

45 ELBOW

3шт.

4

HH55L04004G1

TEE

1шт.

5

2444Z2525

HYD CONNECTOR

1шт.

6

HH25R04004G5

HYD CONNECTOR

1шт.

7

HX34L04028DX

HOSE

1шт.

8

HX32L04040DX

FLEXIBLE HOSE

1шт.

9

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

10

HX23L03175DX

HOSE

1шт.

11

PW64H01089P1

SUPPORT

1шт.

12

PW64H01103P1

BRACKET, SUPPORTING

1шт.

13

ZM73C08020

BOLT,M8x20mm - Course Thread

2шт.

15

ZM22C08020

BOLT

Sems

2шт.

17

ZM73C08025

BOLT,M8x25mm - Course Thread

2шт.
