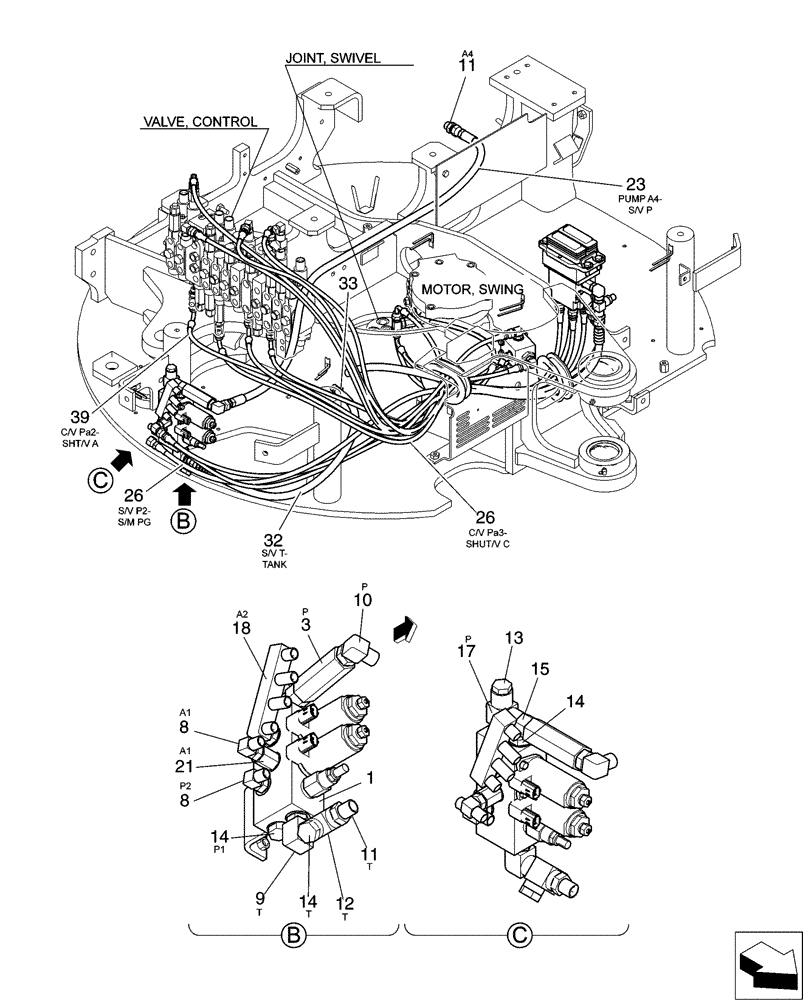

Запчасти Case CX31B (01-056[02]) - CONTROL LINES, VALVE (35) - HYDRAULIC SYSTEMS

1

PX35V00003F1

VALVE

Assembly, Solenoid (Used for Lever Lock, 2-speed Select)

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

Filter, Inline

1шт.

8

HH35S04004G1

90 ELBOW

6шт.

9

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

11

HH25S06006G1

HYD CONNECTOR

2шт.

12

HH55Q06006G1

TEE

1шт.

13

ZE72X04000

PLUG

1шт.

14

ZE72X06000

PLUG

3шт.

15

2444Z3326

HYD CONNECTOR

1шт.

17

PW64H01011P1

TEE

1шт.

18

PH64H01057P1

CONNECTION

1шт.

21

2444Z2525

HYD CONNECTOR

3шт.

23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

33

ZC16X01800

CLIP

1шт.

39

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.
