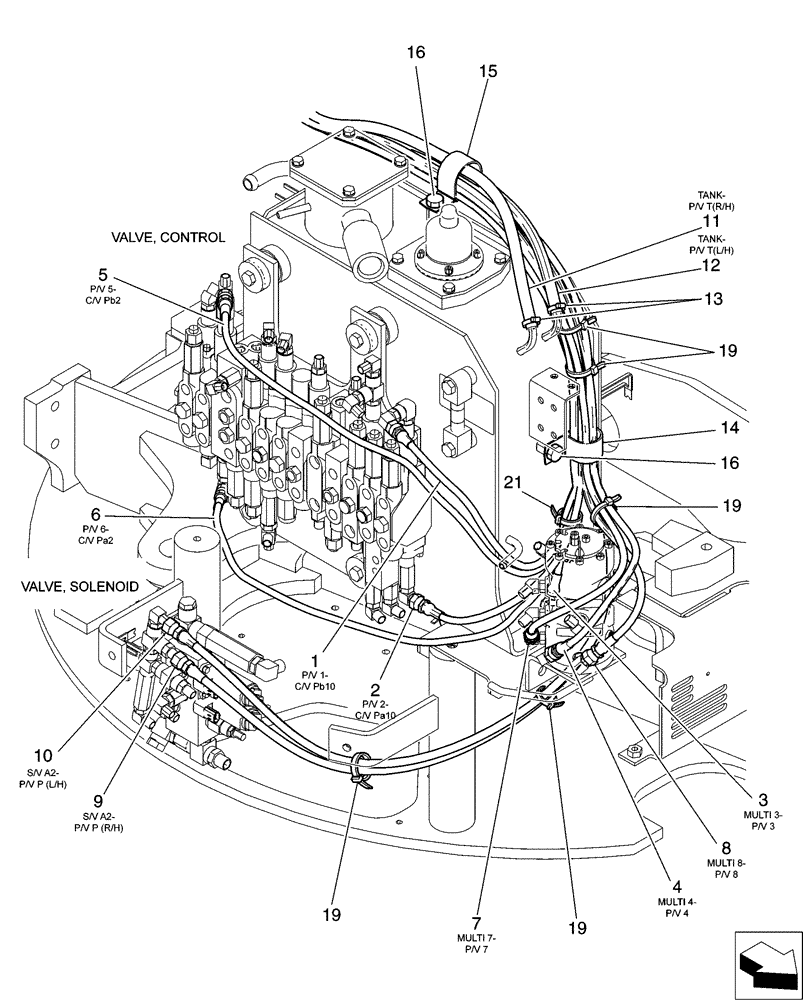

Запчасти Case CX31B (01-054[02]) - CONTROL LINES, REMOTE (35) - HYDRAULIC SYSTEMS

1

HX33L03135DR

HOSE,4.8mm ID x 1350mm L

1шт.

2

HX23L03110DB

HOSE,4.8mm ID x 1100mm L

1шт.

3

HX33L03105DG

HOSE

1шт.

4

HX23L03115DH

HOSE

1шт.

5

HX23L03330DH

HOSE,4.8mm ID x 3300mm L

1шт.

6

HX23L03310DR

HOSE,4.8mm ID x 3100mm L

1шт.

7

HX23L03280DB

HOSE

1шт.

8

HX23L03270DG

HOSE

1шт.

9

HX34L04185DX

HOSE,6.3mm ID x 1850mm L

1шт.

10

HX24L04340DX

HOSE,6.3mm ID x 3400mm L

1шт.

11

PW68H01023DL

HOSE

1шт.

12

PW68H01023D5

HOSE,9.5mm ID x 2090mm L

1шт.

13

ZC16X01800

CLIP

2шт.

14

ZC46X38014

CLIP

1шт.

15

ZC46X46014

CLIP

1шт.

16

ZM73C12020

BOLT,M12x20mm - Course Thread

Sems

2шт.

19

PY01P01043D8

CABLE TIE,102mm L

5шт.
