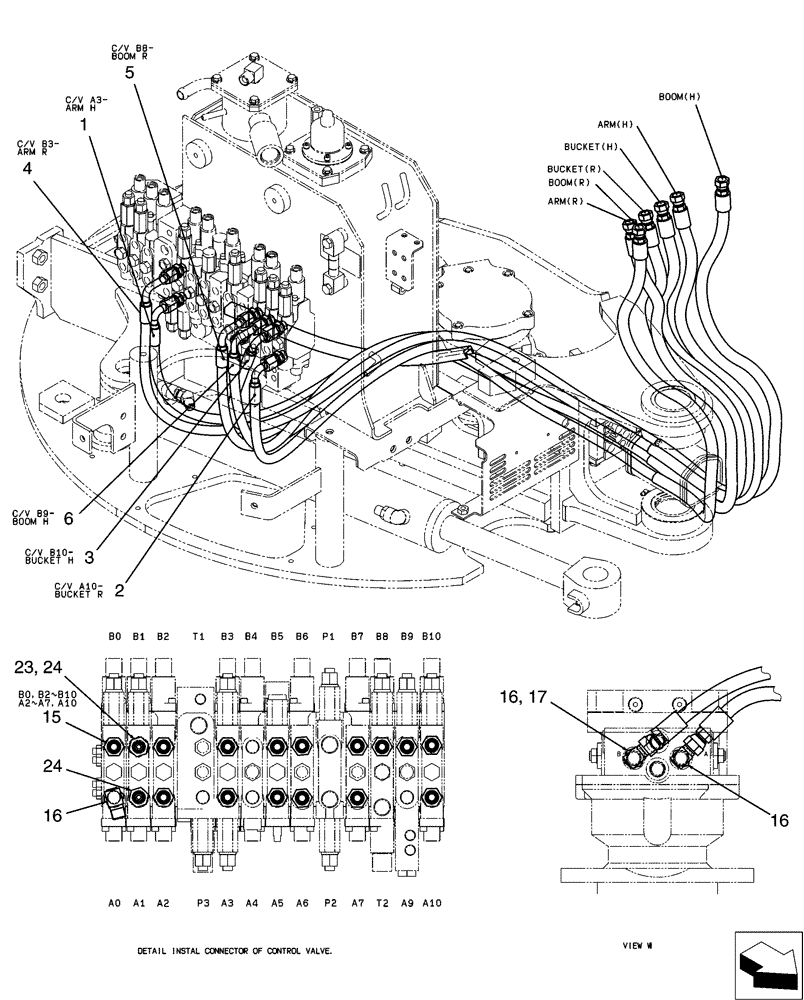

Запчасти Case CX31B (01-036[01]) - HYD LINES, UPP (35) - HYDRAULIC SYSTEMS

1

PW03H01127D1

HOSE

1шт.

2

PW03H01127D2

HOSE,9.5mm ID x 2120mm L

1шт.

3

PW03H01127D3

HOSE

1шт.

4

PW03H01128D1

HOSE

1шт.

5

PW03H01128D3

HOSE

1шт.

6

PW03H01128D5

HYDRAULIC HOSE

1шт.

15

HH25S06006G1

HYD CONNECTOR

15шт.

16

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

17

HH25R06006G5

CONNECTION

1шт.

23

2444Z2891

HYD CONNECTOR

1шт.

24

HH25S04006G1

90 ELBOW

2шт.
