Запчасти Case CX27B PV13 (00-002) - SLEEVE GENERAL MAINTENANCE ITEMS

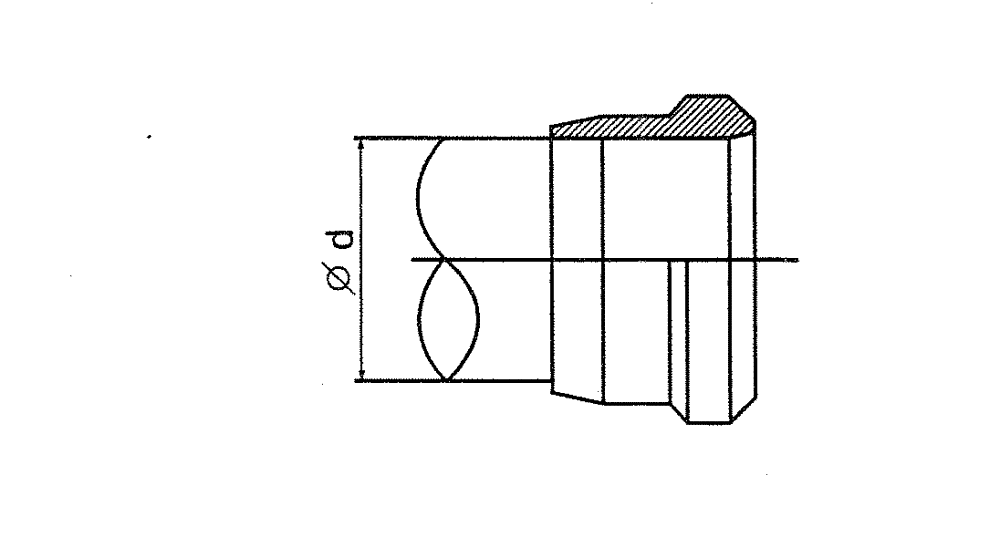

Схема запчастей Case CX27B PV13 - (00-002) - SLEEVE GENERAL MAINTENANCE ITEMS

Артикул

Название

Примечание

Количество

ZA93S10000

TUBE NUT

SLEEVE, TYPE: AMC, TUBE SIZE ød:10

1шт.

ZA93S15000

FERRULE

SLEEVE, TYPE: AMC, TUBE SIZE ød:15

1шт.

ZA93S18000

FERRULE

SLEEVE, TYPE: AMC, TUBE SIZE ød:18

1шт.

ZA93S22000

RING

SLEEVE, TYPE: AMC, TUBE SIZE ød:22

1шт.

ZA93S28000

FERRULE

SLEEVE, TYPE: AMC, TUBE SIZE ød:28

1шт.

ZA93S35000

FERRULE

SLEEVE, TYPE: AMC, TUBE SIZE ød:35

1шт.

ZF93S06000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:6

1шт.

ZF93S08000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:8

1шт.

ZF93S10000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:10

1шт.

ZF93S12000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:12

1шт.

ZF93S15000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:15

1шт.

ZF93S18000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:18

1шт.

ZF93S22000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:22

1шт.

ZF93S28000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:28

1шт.

ZF93S32000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:32

1шт.

ZF93S35000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:35

1шт.

ZF93S38000

FERRULE

SLEEVE, TYPE: IHARA, TUBE SIZE ød:38

1шт.

Выбрано товаров: 17
