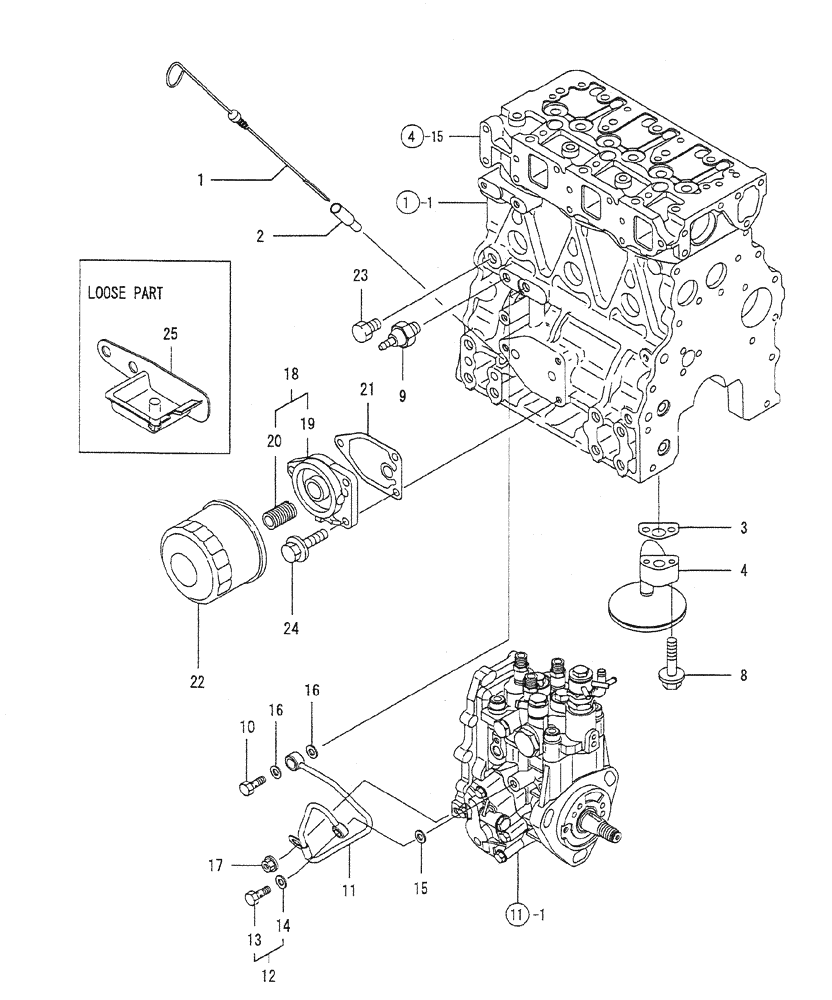

Запчасти Case CX27B PV13 (08-009) - LUB. OIL SYSTEM ENGINE COMPONENTS

1

VV11980234801

DIPSTICK

LUB. OIL

1шт.

2

VV12152034810

GUIDE

DIPSTICK

1шт.

3

VV12915035041

GASKET

(NON-ASB.)

1шт.

4

VV11981035300

PIPE ASSY.

ASSY, OIL INLET

1шт.

8

VV26106080352

BOLT,M8 x 35mm

M 8X 35 PLATED

2шт.

9

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

(0. 5KG) L. 0.

1шт.

10

VV12416039140

BOLT

10, PIPE JOINT

1шт.

11

VV11980239450

PIPE ASSY.

ASSY, LUB. OIL

1шт.

12

VV12900559830

BOLT

ASSY, JOINT

1шт.

13

VV23857030000

BOLT

JOINT, 3

1шт.

14

VV22190080002

SEAL

WASHER 8S

1шт.

15

VV22190080002

SEAL

WASHER 8S

1шт.

16

VV22190100002

SEAL

WASHER 10S

2шт.

17

VV26366060002

NUT,M6

M 6

1шт.

18

VV11980235100

BRACKET

ASSY, FILTER

1шт.

19

VV11980235110

BRACKET

BRACKET

1шт.

20

VV12910035140

STUD

1шт.

21

VV12915035111

GASKET

(NON-ASB.)

1шт.

22

VV12915035152

ENGINE OIL FILTER

80X80L

1шт.

23

VV17105649120

PLUG

DRAIN

1шт.

24

VV26106080202

BOLT,M8 x 20mm

M 8X 20 PLATED

3шт.

25

VV11994035800

PAN

(LO)

1шт.
