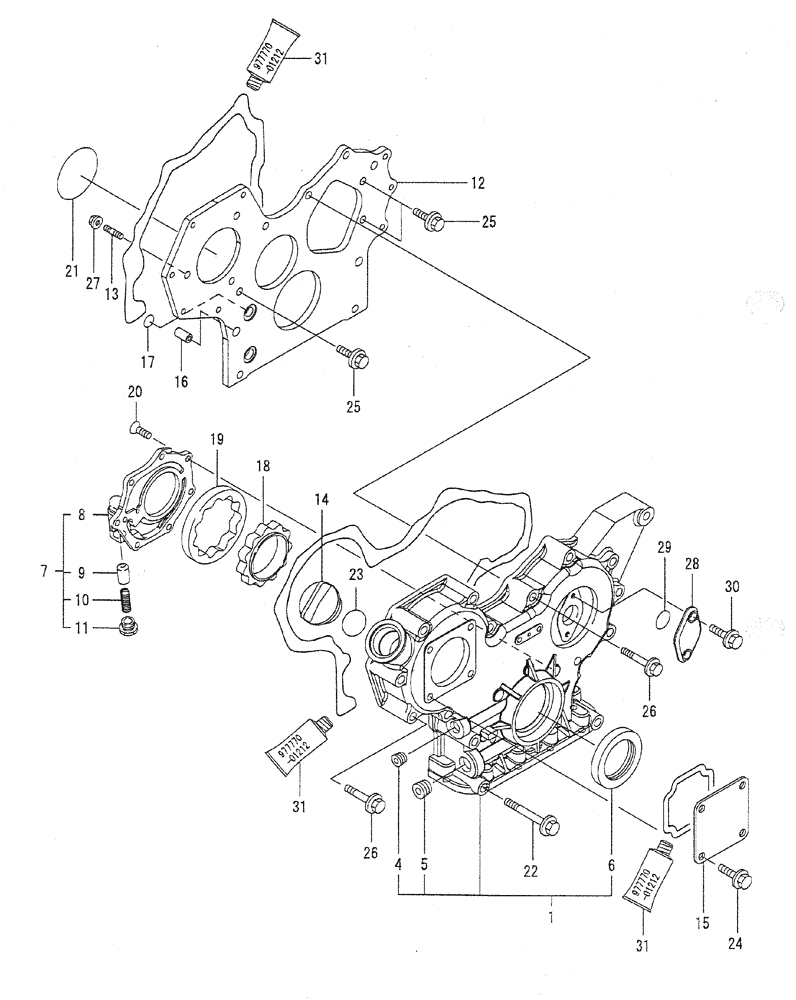

Запчасти Case CX27B PV13 (08-002) - GEAR HOUSING ENGINE COMPONENTS

1

VV71980201500

HOUSING ASSY.

ASSY, GEAR

1шт.

4

VV23876030000

PLUG

PT3/8, SCREW

1шт.

5

VV23876040000

PLUG

PT 1/2

1шт.

6

VV12979501800

OIL SEAL

OIL

1шт.

7

VV11980232100

COVER ASSY

ASSY, PUMP

1шт.

8

VV11980232070

COVER

LUB. OIL PUMP

1шт.

9

VV12990032130

VALVE

RELIEF

1шт.

10

VV12941832320

SPRING

1шт.

11

VV12900132330

PLUG

1шт.

12

VV11980201520

CASE

GEAR CASE

1шт.

13

VV11980201560

STUD

M8X25

3шт.

14

VV12416001751

CAP

FILLER

1шт.

15

VV12424001871

COVER

Hydraulic Oil Pump

1шт.

16

VV12979501950

PIPE

KNOCK L=18

2шт.

17

VV11960932040

O-RING

P16

4шт.

18

VV11980232111

ROTOR

INNER

1шт.

19

VV11980232120

ROTOR

OUTER

1шт.

20

VV11980232130

SCREW

M6X16

7шт.

21

VV12185051960

O-RING

F. I. PUMP

1шт.

22

VV12900191841

BOLT

M8X85

3шт.

23

VV24311000320

O-RING

1A P-32. 0

1шт.

24

VV26106080162

BOLT,M8 x 16mm

M 8X 16 PLATED

4шт.

25

VV26106080162

BOLT,M8 x 16mm

M 8X 16 PLATED

3шт.

26

VV26106080552

BOLT,M8 x 55mm

H 8X 55 PLATED

12шт.

27

VV26306080002

NUT,M8

3шт.

28

VV12102301550

COVER

BLIND

1шт.

29

VV24341000240

O-RING

1A S-24. 0

1шт.

30

VV26106060162

BOLT,M6 x 16mm

M 6X 16 PLATED

2шт.

31

VV97777001212

GASKET

LIQUID (1) OPTIONAL PART

1шт.
