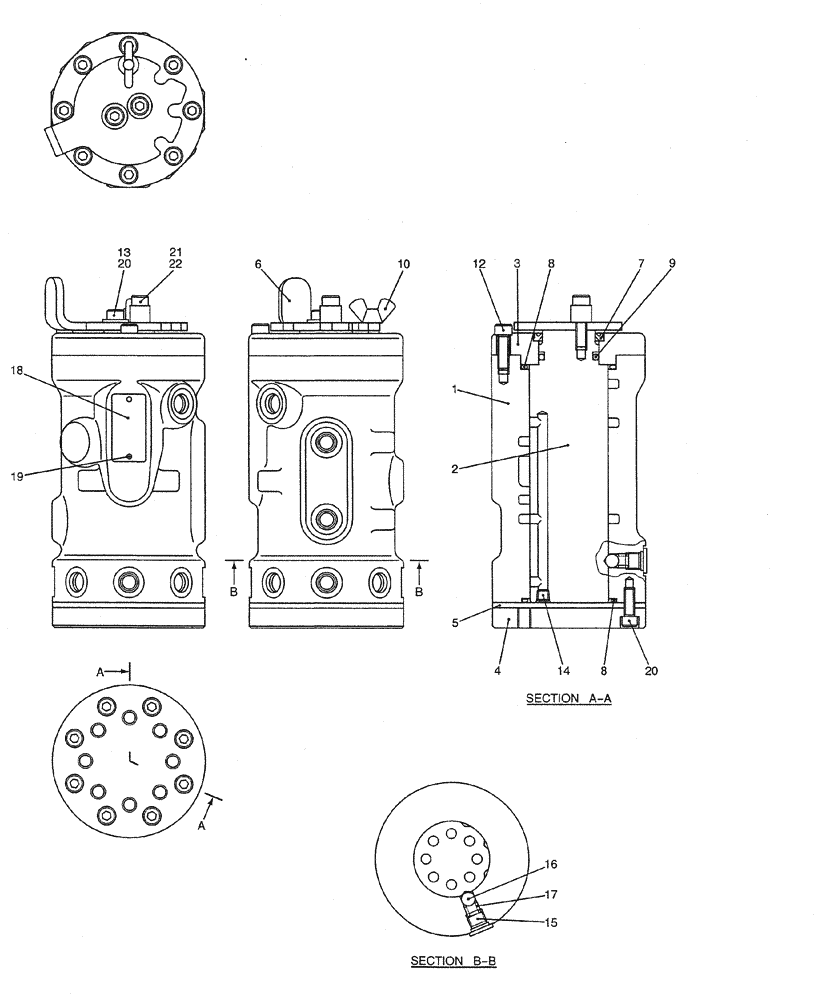

Запчасти Case CX27B PV13 (07-044) - VALVE ASSY, SELECTOR, P/N PX30V00060F1 ELECTRICAL AND HYDRAULIC COMPONENTS

PX30V00060F1

CONTROL VALVE

ASSY, SELECTOR

1шт.

1

PX30V01037P1

HOUSING

1шт.

2

PX30V01036P1

SPOOL

1шт.

3

PX30V01041P1

COVER

1шт.

4

PX30V01018P1

COVER

1шт.

5

PX30V01022P1

SPACER

1шт.

6

PX30V01035P1

LEVER

1шт.

7

YN30V01012P1

SEAL

DUST

1шт.

8

ZD12G05000

O-RING,49.40mm ID x 55.60mm OD x 3.10mm

2шт.

9

ZD11P02800

O-RING

1шт.

10

PX30V01020P1

BOLT

1шт.

12

ZS28C06020

SCREW,Hex Socket Head, M6 x 20mm

CAP

2шт.

13

ZW16P06000

WASHER

1шт.

14

PX30V01029P1

PLUG

5шт.

15

YN30V01027P1

PLUG

1шт.

16

YN30V01015P1

BALL

1шт.

17

YN30V01028P1

SPRING

1шт.

18

YN22T00264P1

NAME PLATE

1шт.

19

2420Z1036D3

CLEVIS

2шт.

20

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

CAP

15шт.

21

PX30V01032P1

SPACER

1шт.

22

ZS28C06025

SCREW,Hex Socket Head, M6 x 25mm

CAP

1шт.

PX30V00060R200

REPAIR KIT

KIT CONSISTS OF REF.3(1), 6(1), 7(1), 8(1), 9(1), 10(1), 13(1), 20(1), 21(1), 22(1)

1шт.
