(07-034) - CYLINDER ASSY, DOZER

Запчасти Case CX27B PV13 (07-034) - CYLINDER ASSY, DOZER ELECTRICAL AND HYDRAULIC COMPONENTS

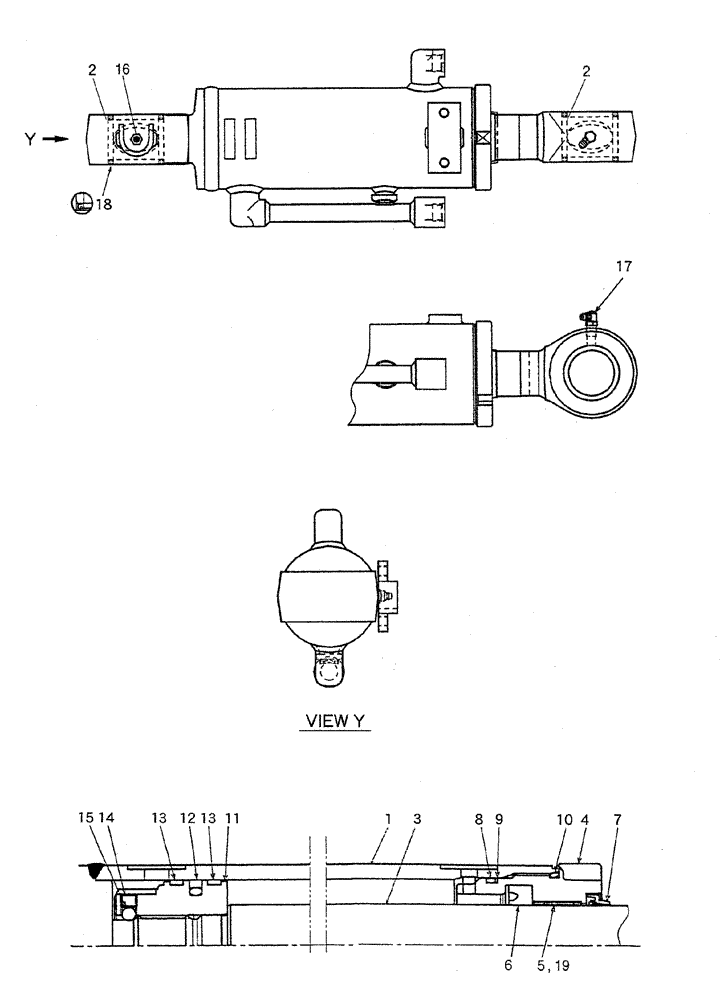

Схема запчастей Case CX27B PV13 - (07-034) - CYLINDER ASSY, DOZER ELECTRICAL AND HYDRAULIC COMPONENTS
6
9
12
15
8
17
18
11
3
4
14
16
13
7
13
10
5
1
2
2
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PV01V00047F1

CYLINDER

ASSY, DOZER

1шт.

PV01V00047F2

HYDRAULIC CYLINDER

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

PM01V00045S002

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

ROD

1шт.

4

PV01V00047S004

CYLINDER HEAD

1шт.

5

2438U1169S4

BUSHING

1шт.

6

2438U635S3

RING

U

1шт.

7

PH01V00006S006

RING

RING

1шт.

8

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

9

PX01V00030S008

BACK-UP RING

1шт.

10

ZD12G08500

O-RING,84.40mm ID x 90.60mm OD x 3.10mm

1шт.

11

PV01V00047S011

PISTON

1шт.

12

YR01V00003S014

SEAL

RING

1шт.

13

PX01V00030S017

RING

SLIDE

2шт.

14

2438U1057S16

SET SCREW

SETSCREW

1шт.

15

2436U946S11

BALL

1шт.

16

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

GREASE

1шт.

17

ZG91U02000

LUBE NIPPLE

1шт.

18

PR01V00002S027

SEAL

DUST

4шт.

19

PV01V00047S019

BUSHING

BUSHING

1шт.

PV01V00047R100

REPAIR KIT

PISTON SIDE CONSISTS OF REF.1(1), 2(1), 18(2)

1шт.

PV01V00047R200

REPAIR KIT

ROD SIDE CONSISTS OF REF.2(1), 3(1), 18(2)

1шт.

PV01V00047R300

REPAIR KIT

CONSISTS OF REF.6(1), 7(1), 8(1), 9(1), 10(1), 12(1), 13(2

1шт.
