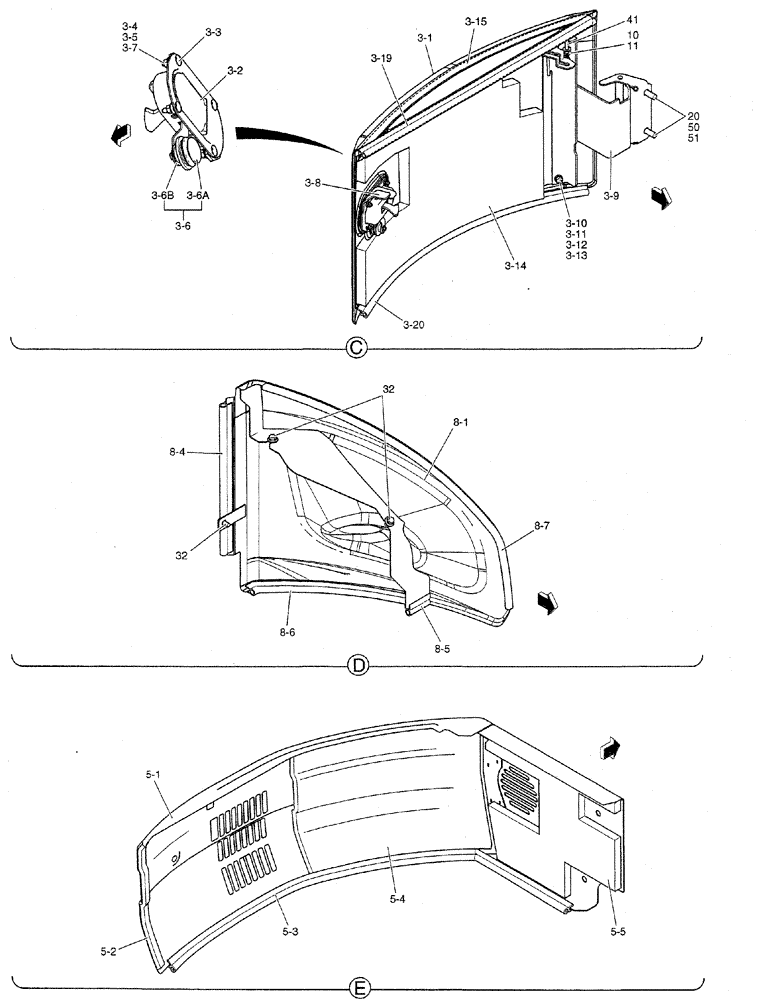

Запчасти Case CX27B PV13 (01-065) - GUARD INSTAL (CANOPY) (05) - SUPERSTRUCTURE

3-1

PM22C01062P1

HOOD

BONNET

1шт.

3-2

PW22C01067P1

LOCK

1шт.

3-3

PH22C01023P1

BOLT

4шт.

3-4

ZN18C05004

NUT

4шт.

3-5

ZW26X05000

LOCK WASHER

LOCK

4шт.

3-6

PM21C01268F1

LOCK

ASSY

1шт.

3-6a

YR22C01025P2

LOCK

1шт.

3-6b

PM21C01269P1

PLATE

1шт.

3-7

ZW16H05000

WASHER

4шт.

3-8

PW22C01160P3

BRACKET

1шт.

3-9

PM22C01116P1

HINGE

1шт.

3-10

PW21C01413P1

CAPSCREW

CAP

2шт.

3-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

3-12

ZW26X08000

LOCK WASHER

Lock

2шт.

3-13

ZN18C08007

NUT

2шт.

3-14

PM22C01112P3

FOAM INSULATION

1шт.

3-15

PM22C01113P2

FOAM INSULATION

1шт.

3-19

YJ21C01080DG

WEATHERSTRIP

1шт.

3-20

YN21C01712DE

WEATHERSTRIP

1шт.

5-1

PM21C01583P1

COVER

ASSY

1шт.

5-2

PM21C01233P1

RUBBER

1шт.

5-3

YT21C01039DK

WEATHERSTRIP

1шт.

5-4

PM21C01392P1

FOAM INSULATION

1шт.

5-5

PM21C01504P1

FOAM INSULATION

1шт.

8-1

PM21C01484P1

COVER

COVER

1шт.

8-4

YR21C01165D9

WEATHERSTRIP

1шт.

8-5

LE21C01070DL

WEATHERSTRIP

1шт.

8-6

PY21C01007DG

WEATHERSTRIP

1шт.

8-7

PE21C01135D4

TRIM PANEL

1шт.

10

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

20

ZW26X12000

LOCK WASHER

2шт.

32

PA21C01133P1

BOLT

SEMS

3шт.

41

PM22C01087P2

STAY

1шт.

50

ZS18C12025

SCREW,Hex, M12 x 25mm

CAP

2шт.

51

2418T10357

WASHER

2шт.
