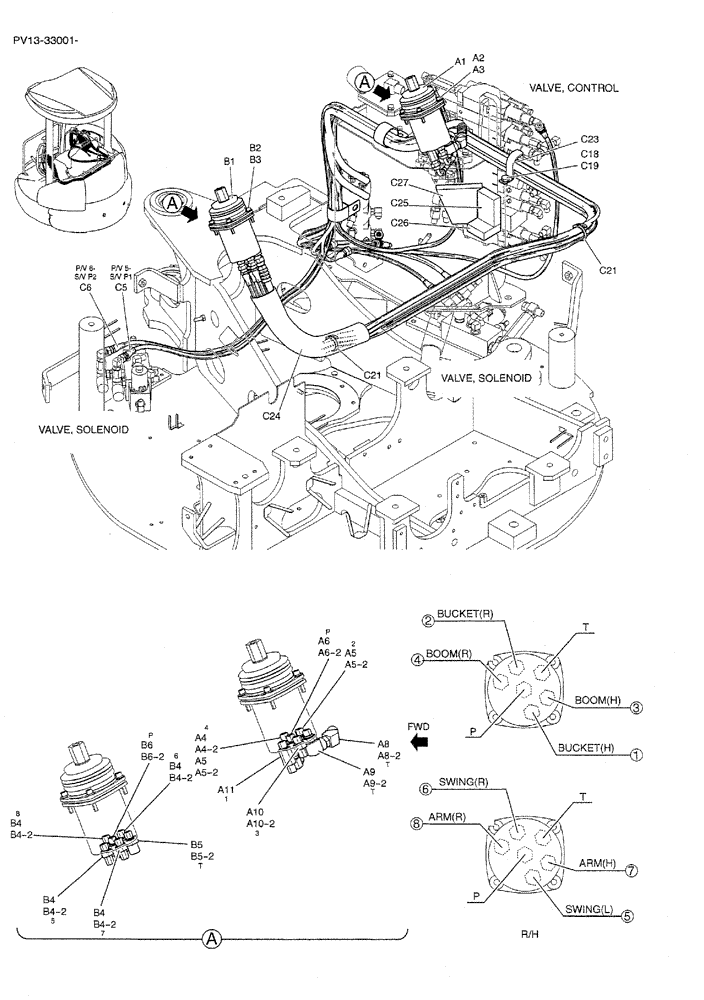

Запчасти Case CX27B PV13 (01-034) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) (05) - SUPERSTRUCTURE

VALVE INSTAL (RIGHT SIDE STD) (PW64H00037F1)

1шт.

a1

PX30V00043F1

VALVE

PILOT

1шт.

SEE (C.P.M)

1шт.

a2

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

CAP

4шт.

a3

ZW16X06000

WASHER

4шт.

a4

2444Z2525

HYD CONNECTOR

1шт.

a4-2

ZD12P01100

O-RING

1шт.

a5

HH35S04004G1

90 ELBOW

2шт.

a5-2

ZD12P01100

O-RING

2шт.

a6

HH25S04004G3

HYD CONNECTOR

1шт.

a6-2

ZD12P01100

O-RING

1шт.

a8

HH45S06004G1

45 ELBOW

1шт.

a8-2

ZD12P01400

O-RING

1шт.

a9

2444Z2894

90 ELBOW

1шт.

a9-2

ZD12P01100

O-RING

1шт.

a10

HH25S04004G1

HYD CONNECTOR

1шт.

a10-2

ZD12P01100

O-RING

1шт.

a11

PU64H01002P1

HYD CONNECTOR

1шт.

VALVE INSTAL (LEFT SIDE STD) (PW64H00038F1)

1шт.

b1

PX30V00043F1

VALVE

PILOT

1шт.

SEE (C.P.M)

1шт.

b2

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

CAP

4шт.

b3

ZW16X06000

WASHER

4шт.

b4

HH25S04004G1

HYD CONNECTOR

4шт.

b4-2

ZD12P01100

O-RING

4шт.

b5

HH25S06004G3

HYD CONNECTOR

1шт.

b5-2

ZD12P01100

O-RING

1шт.

b6

HH25S04004G3

HYD CONNECTOR

1шт.

b6-2

ZD12P01100

O-RING

1шт.

PV68H00017F1

LINE

CONTROL, MAIN (JOHN-DEER MULTI)

1шт.

c5

HX23L03330DH

HOSE,4.8mm ID x 3300mm L

1шт.

c6

HX23L03330DR

HOSE

1шт.

c18

ZS18C08016

SCREW,Hex, M8 x 16mm

CAP

1шт.

c19

ZW16H08000

WASHER

1шт.

c21

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

2шт.

c23

PW68H01041P1

CLAMP

1шт.

c24

PM68H01057P1

COVER

1шт.

c25

PM68H01054P1

FOAM INSULATION

1шт.

c26

PM68H01055P1

FOAM INSULATION

1шт.

c27

PH68H01042P1

RUBBER

1шт.
