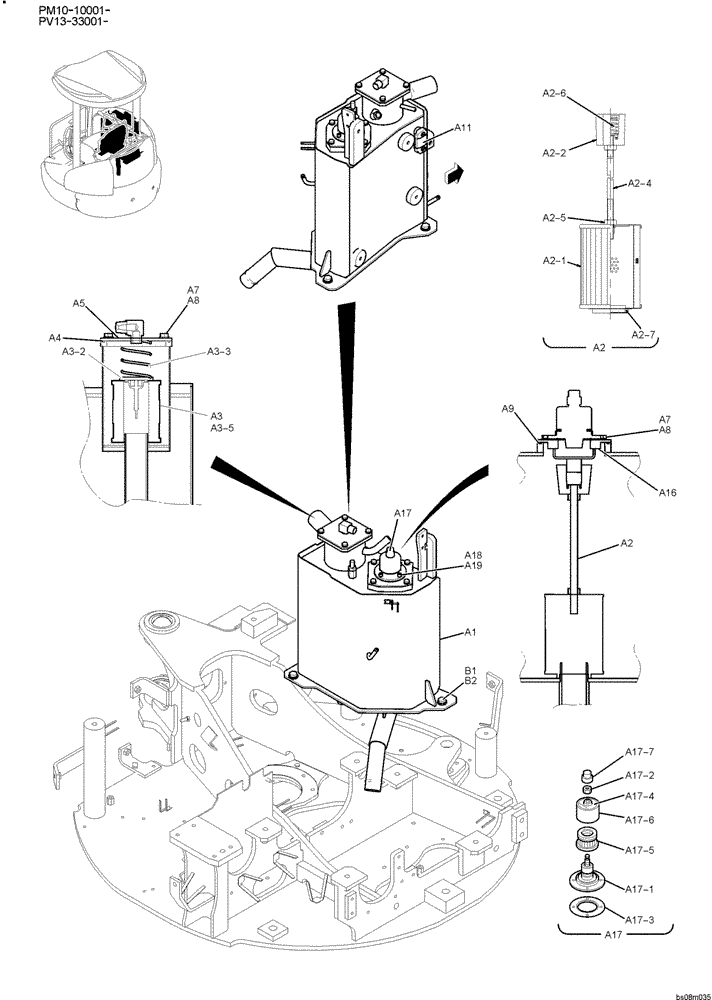

Запчасти Case CX27B PV13 (01-015) - TANK ASSEMBLY HYD (NIBBLER & BREAKER) (05) - SUPERSTRUCTURE

TANK ASSY, HYD (PM33H00037F1)

1шт.

a1

PM33H00030P1

TANK

, Serial Range: PM10-10001-10169

1шт.

, Serial Range: PV13-33001-33142

1шт.

a1

PM33H00038P1

TANK

, Start Serial: PM10-10170

1шт.

, Start Serial: PV13-33143

1шт.

a2

PW50V00015F2

STRAINER ASSY.

ASSY, SUCTION

1шт.

a3

PW50V00012F2

HYDRAULIC OIL FILTER

FILTER ASSY, RETURN

1шт.

a3-2

PW21V00004P1

VALVE

CHECK

1шт.

a3-3

YR52V01001S004

SPRING

1шт.

a3-5

YR52V01003P1

FILTER

ELEMENT

1шт.

a4

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

a5

PM33H01083P2

COVER

COVER

1шт.

a7

ZW26X08000

LOCK WASHER

Lock

8шт.

a8

ZS18C08016

SCREW,Hex, M8 x 16mm

CAP

8шт.

a9

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

a11

PE58S00001P1

GAUGE

LEVEL, Serial Range: PM10-10001-10169

1шт.

, Serial Range: PV13-33001-33142

1шт.

a11

PM58S00001P1

LEVEL GAUGE

, Start Serial: PM10-10170

1шт.

, Start Serial: PV13-33143

1шт.

a16

PW33H01144P1

COVER

1шт.

a17

YN57V00002F4

BREATHER ASSY.

ASSY

1шт.

a17-1

2446U260S1

BODY

ASSY

1шт.

a17-2

2446U260S5

NUT

1шт.

a17-3

2446U260S8

PACKING

1шт.

a17-4

YN57V00002S007

IDENTITY PLATE

CAUTION

1шт.

a17-5

YN57V00002S010

ELEMENT

1шт.

a17-6

YN57V00002S011

COVER

1шт.

a17-7

YN57V00002S012

CAP

1шт.

a18

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

CAP

4шт.

a19

ZW26K06000

LOCK WASHER

4шт.

PW50V00012R200

HYDRAULIC OIL FILTER

CONSISTS OF ITEM (A3-5) X1, (A4) X1

1шт.

TANK INSTAL, HYD (PM33H00026F1)

1шт.

b1

ZS18C12030

SCREW,Hex, M12 x 30mm

CAP

3шт.

b2

ZW16H12000

WASHER

WASHER

3шт.
