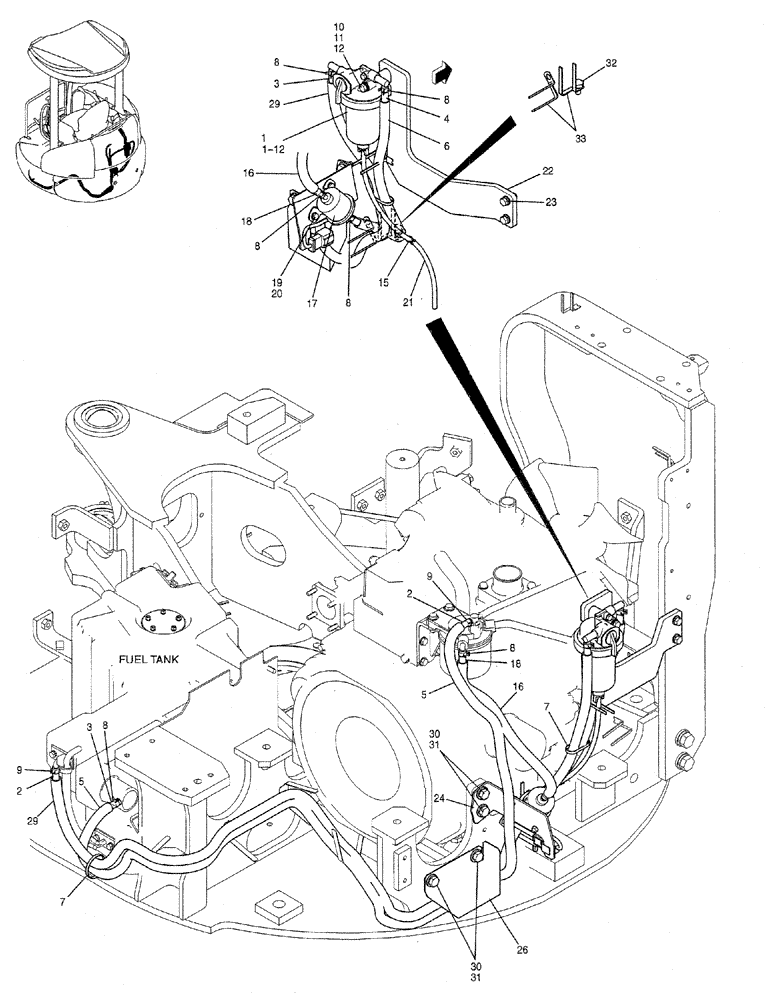

Запчасти Case CX27B PV13 (01-011) - FUEL LINES (05) - SUPERSTRUCTURE

FUEL LINES (PM21P00006F1)

1шт.

1

PH02P01056P1

SEPARATOR

ASSY, WATER

1шт.

2

PA21P01005DN

HOSE

1шт.

3

PH21P01003DG

HOSE

1шт.

4

PH21P01003D3

HOSE ASSY.

1шт.

5

PW21P01003DN

TUBE

1шт.

6

PU13E01002DA

TUBE

1шт.

7

PY01P01043D3

CABLE TIE,188mm L

2шт.

8

PH05P01088D5

CLIP

6шт.

9

PH05P01088D6

CLIP

CLIP

2шт.

10

ZS18C08070

SCREW,Hex, M8 x 70mm

CAP

1шт.

11

ZW16P08000

WASHER

ID 08 x OD 17 x Th 1.6mm

1шт.

12

ZW26X08000

LOCK WASHER

Lock

1шт.

15

PA21P01003D2

CLIP

1шт.

16

PW21P01003DT

TUBE

1шт.

17

PW22P00001P1

FUEL PUMP

1шт.

18

PH21P01003DM

HOSE

1шт.

19

ZS18C06016

SCREW,Hex, M6 x 16mm

CAP

2шт.

20

ZW16P06000

WASHER

2шт.

21

HX11Y04050DX

HOSE,6mm ID x 500mm L

1шт.

22

PM21P01011P1

BRACKET

1шт.

23

ZM22C08025

BOLT

SEMS

2шт.

24

PM21P01013P1

BRACKET

1шт.

26

PW21P01009P1

COVER

1шт.

29

PW21P01003DM

RIGID TUBE

1шт.

30

ZW16H10000

WASHER

5шт.

31

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

4шт.

32

ZS18C10016

SCREW,Hex, M10 x 16mm

CAP

1шт.

33

2432R233D3

CLIP

2шт.

Yanmar Diesel Part Number

1шт.

1

VV11980255700

SEPARATOR

ASSY, WATER

1шт.

1-12

VV11980255710

FILTER STRAINER

WATER SEPARATOR

1шт.
