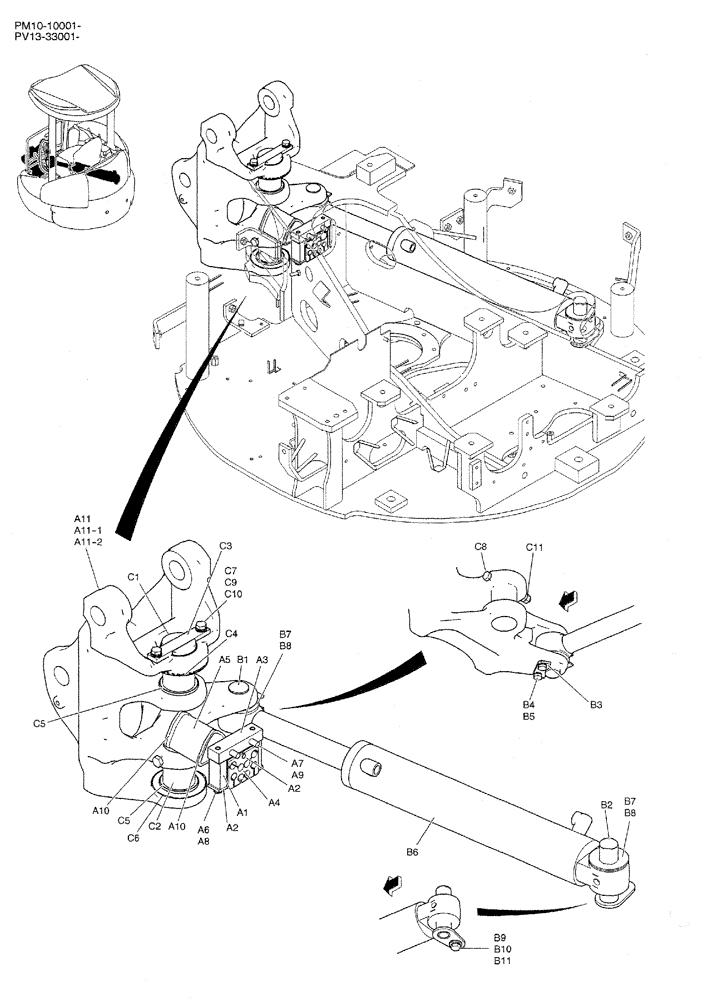

Запчасти Case CX27B PV13 (01-002) - BRACKET ASSEMBLY, SWING (NIBBLER & BREAKER) (05) - SUPERSTRUCTURE

BRACKET GROUP, SWING (PV02B00169F1)

1шт.

a1

PX02B01268P1

PLATE

2шт.

a2

PX02B01269P1

PLATE

1шт.

a3

PX02B01270P1

PLATE

PLATE

1шт.

a4

PX02B01266P1

GASKET

RUBBER

1шт.

a5

PX02B01209P1

GROMMET

1шт.

a6

ZS18C10100

SCREW,Hex, M10 x 100mm

CAP

2шт.

a7

ZS28C10055

SCREW,Hex Socket Head, M10 x 55mm

CAP

2шт.

a8

ZW16H10000

WASHER

2шт.

a9

ZW26X10000

LOCK WASHER

2шт.

a10

PY01P01043D8

CABLE TIE,102mm L

2шт.

a11

PV02B00143F1

BRACKET

ASSY, SWING

1шт.

a11-1

PV02B00144P1

BRACKET

BRACKET, SWING

1шт.

a11-2

PM02B01316P2

BUSHING,60mm ID x 70mm OD x 26mm L

1шт.

CYLINDER INSTALL (PM02B00162F1)

1шт.

b1

PM02B01388P1

PIN

PIN

1шт.

b2

PM02B01389P1

PIN,35mm OD x 124mm L

1шт.

b3

PM02B01220P1

PLATE

1шт.

b4

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap, Serial Range: PM10-10001-10077

2шт.

, Serial Range: PV13-33001-33065

1шт.

b4

ZS18C10030

SCREW,Hex, M10 x 30mm

, Start Serial: PM10-10078

2шт.

, Start Serial: PV13-33066

1шт.

b5

ZW26X10000

LOCK WASHER

2шт.

b6

PM01V00056F2

CYLINDER

ASSY, SWING

1шт.

SEE (C.P.M)

1шт.

b7

PR02B01109P1

SHIM,0.5mm Thk

2шт.

b8

PR02B01122D1

SHIM,0.9mm Thk

4шт.

b9

2418T12345

WASHER

1шт.

b10

ZS18C12030

SCREW,Hex, M12 x 30mm

CAP

1шт.

b11

ZW26X12000

LOCK WASHER

1шт.

BRACKET INSTAL, SWING (PV02B00145F1)

1шт.

c1

PV02B01306P1

PIN

1шт.

c2

PV02B01307P1

PIN

1шт.

c3

PM02B01332P1

PLATE

1шт.

c4

PM02B01247P1

WASHER

1шт.

c5

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

DUST

2шт.

c6

PM02B01231P1

SHIM,0.5mm Thk

1шт.

c7

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

c8

HS18C12135G1

BOLT

CAP

1шт.

c9

ZW26X10000

LOCK WASHER

2шт.

c10

ZW16X10000

WASHER

2шт.

c11

ZN18C12010

NUT

2шт.
