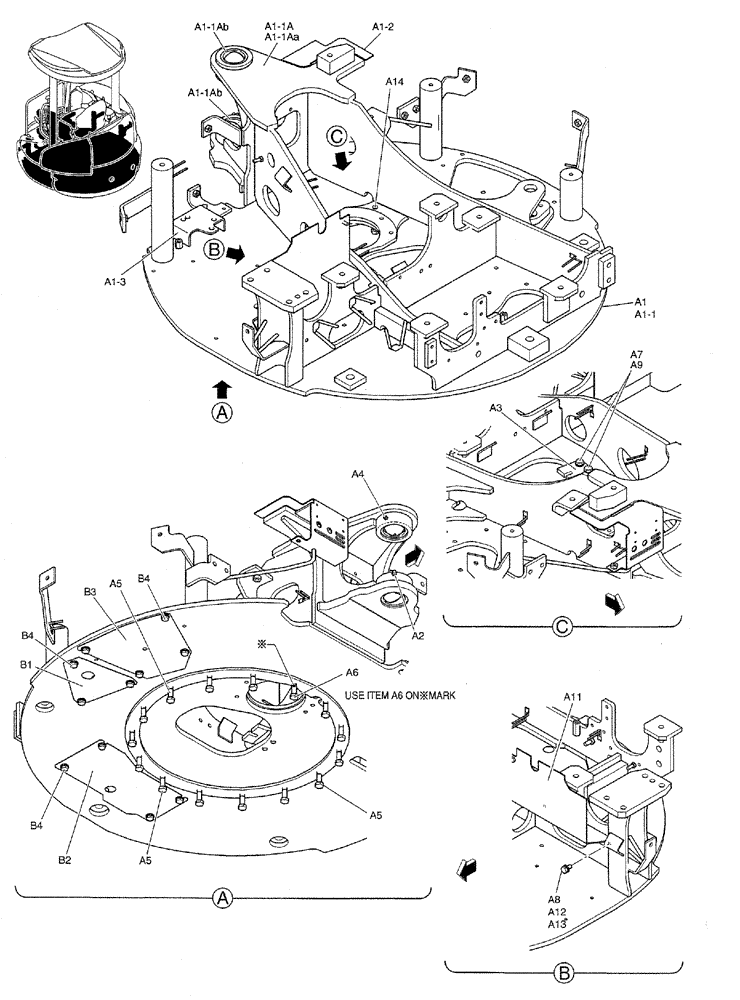

Запчасти Case CX27B PV13 (01-001) - FRAME ASSEMBLY, UPPER (05) - SUPERSTRUCTURE

FRAME GROUP, UPP (PV52F00025F1)

1шт.

a1

PV52F00024P1

FRAME, UPP

1шт.

a1-1

PM52F00038P1

FRAME, UPP

1шт.

a1-1a

PM52F01362F1

BRACKET ASSY

1шт.

a1-1aa

PM52F01363P1

BRACKET

1шт.

a1-1ab

PM52F01256P1

BUSHING,60mm ID x 75mm OD x 53mm L

2шт.

a1-2

PW52F01370P1

BRACKET

1шт.

a1-3

PW52F01333P1

PLATE

1шт.

a2

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

a3

PM52F01202P1

STOP

1шт.

a4

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

a5

ZS18C12060

SCREW,Hex, M12 x 60mm

CAP

14шт.

a6

HS58C12070G2

BOLT

CAP

1шт.

a7

ZS18C12030

SCREW,Hex, M12 x 30mm

CAP

2шт.

a8

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

a9

ZW16H12000

WASHER

2шт.

a11

PM52F01274P1

PLATE

1шт.

a12

ZW26X10000

LOCK WASHER

2шт.

a13

ZW16P10000

WASHER

2шт.

a14

YN64H01391D1

CAP

2шт.

COVER ASSY, UNDER (PM24C00006F1)

1шт.

b1

PM24C01041P1

COVER

COVER

1шт.

b2

PM24C01021P1

COVER

COVER

1шт.

b3

PM24C01020P1

COVER

COVER

1шт.

b4

ZM73C10020

BOLT,M10x20mm - Course Thread

SEMS

11шт.
