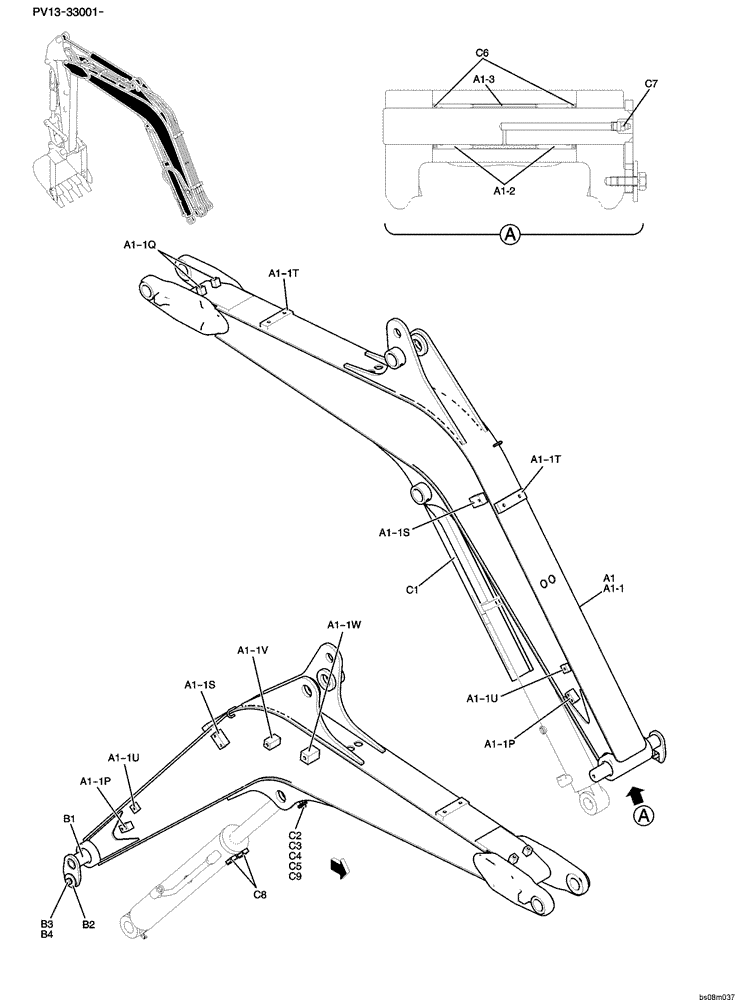

Запчасти Case CX27B PV13 (03-001) - BOOM ASSY, STD 2.15M Attachments

BOOM ASSY (PV02B00178F1)

1шт.

a1

PV02B00179F1

BOOM

ASSY, HOE, Serial Range: PV13-33001-33144

1шт.

a1

PV02B00188F1

BOOM ASSY, HOE, Start Serial: PV13-33145

1шт.

a1-1

NSS

NOT SOLD SEPARAT

HOE

1шт.

a1-1p

PW02B01260P1

BLOCK

TAPPED

2шт.

a1-10

PM02B01253P1

BLOCK

TAPPED

2шт.

a1-1s

PH12B01113P1

BLOCK

TAPPED

2шт.

a1-1t

PM02B01266P1

BLOCK

TAPPED

2шт.

a1-1u

PR02B01058P1

BLOCK

TAPPED

2шт.

a1-1v

R16T0184D5

BLOCK

TAPPED

1шт.

a1-1w

R16T0373D7

BLOCK

BLOCK, TAPPED

1шт.

a1-2

PM12B01203P1

BUSHING,40mm ID x 50mm OD x 40mm L

, Serial Range: PV13-33001-33144

2шт.

a1-2

PM02B01394P1

BUSHING

BUSHING, Start Serial: PV13-33145

2шт.

a1-3

PM02B01255P1

COLLAR

1шт.

BOOM INSTAL (PM02B00163F1)

1шт.

b1

PM02B01409P1

PIN

1шт.

b2

2418T21137

WASHER

1шт.

b3

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

b4

ZW26X10000

LOCK WASHER

1шт.

BOOM GROUP (PV02B00183F1)

1шт.

c1

PM02B01376P1

COVER

1шт.

c2

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

1шт.

c3

ZW26X10000

LOCK WASHER

1шт.

c4

ZW16H10000

WASHER

1шт.

c5

PN03M01009D2

WASHER

1шт.

c6

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

DUST

2шт.

c7

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

c8

PH02B01004P1

TUBE

2шт.

c9

PV02B01297P1

SPACER

1шт.
