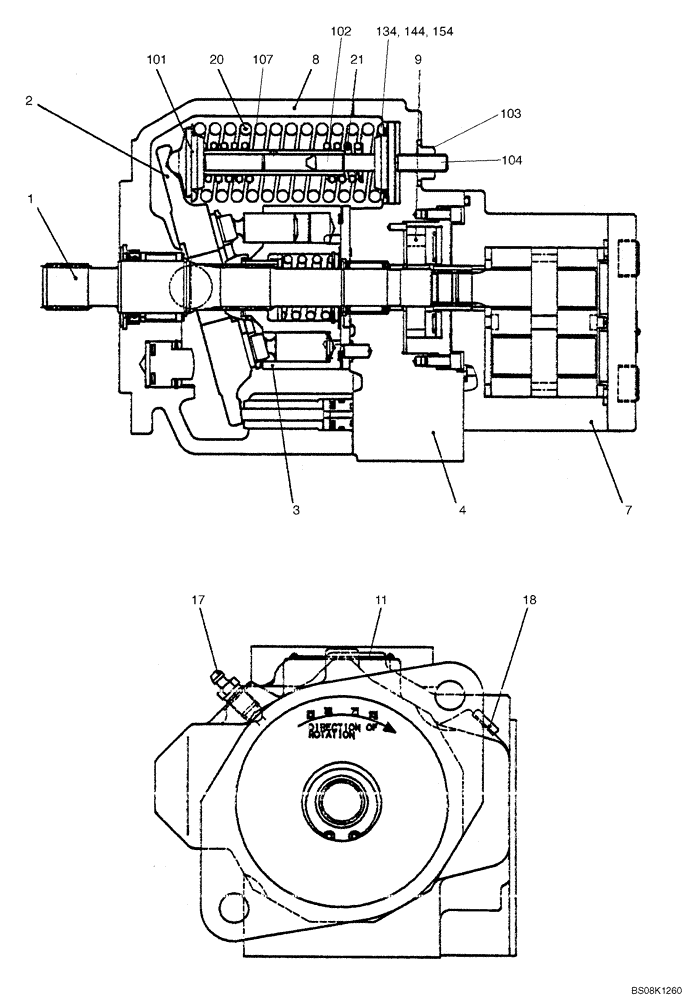

Запчасти Case CX27B BTW (07-023) - PUMP ASSY (PM10V00017F1) (35) - HYDRAULIC SYSTEMS

PUMP ASSY, PM10V00017F1

1шт.

1

PM10V01001F1

SHAFT ASSY.

See Figure 07-024

1шт.

2

PM10V01007F1

PLATE ASSY.

Block; See Figure 07-025

1шт.

3

PM10V01003F1

ROTOR ASSY.

See Figure 07-026

1шт.

4

PM10V01008F1

COVER ASSY

See Figure 07-027

1шт.

7

PM10V00020F1

GEARBOX ASSY

See Figure 07-029

1шт.

8

PM10V01010F1

HOUSING ASSY.

1шт.

9

PX10V00015F1

PUMP

Assy; See Figure 07-028

1шт.

11

EN10V00005S030

IDENTITY PLATE

Name

1шт.

17

PY10V00007S017

BREATHER

Air

1шт.

18

2441U720S49

PLUG

1шт.

20

PM10V00017S020

SPRING

1шт.

21

PM10V00017S021

SPRING

1шт.

101

PM10V01005S001

SPRING SEAT

1шт.

102

PM10V01005S002

SPRING SEAT

1шт.

103

PM10V01005S003

NUT

1шт.

104

ZS83C08025

SCREW

Set

1шт.

107

PM10V01005S007

GUIDE

1шт.

134

PW10V00001S048

SHIM,1.0mm Thk

2шт.

144

PW10V00001S047

SHIM,0.5mm Thk

2шт.

154

PM10V01005S054

SHIM,0.3mm Thk

2шт.
