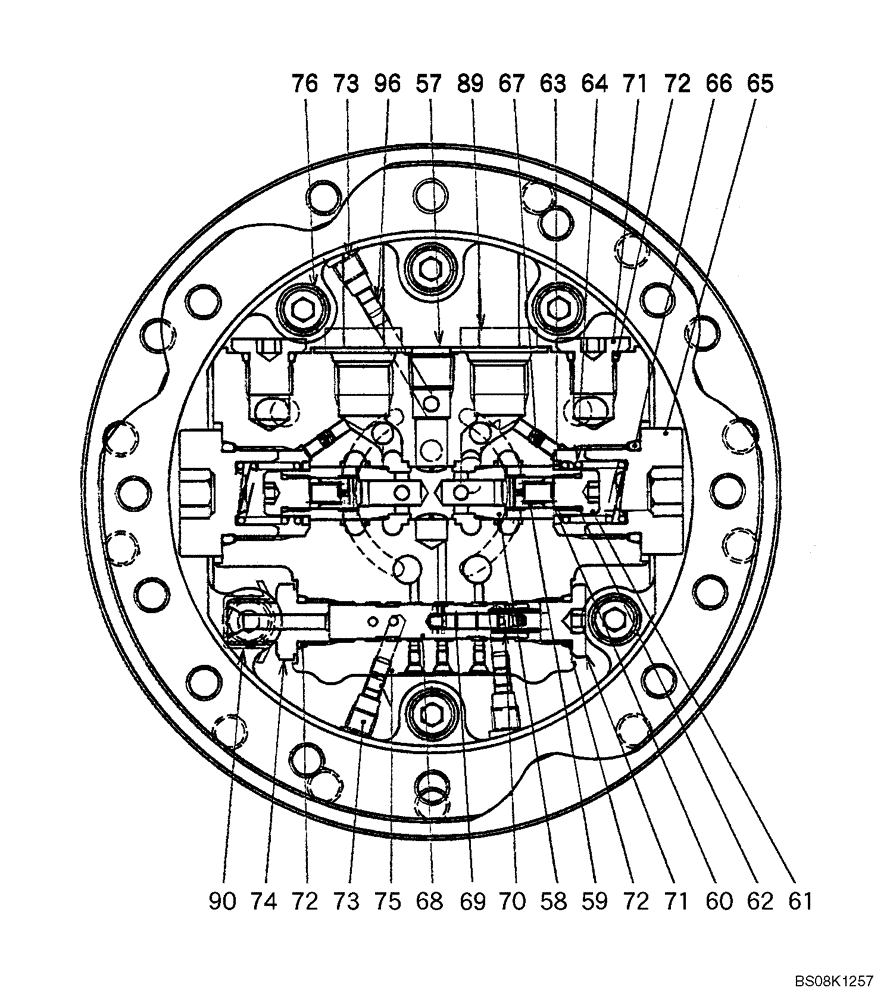

Запчасти Case CX27B BTW (07-021) - MOTOR ASSY (PROPELLING) 1 OF 2 (PM15V00021F1) (35) - HYDRAULIC SYSTEMS

.

PM15V00021F1

HYDRAULIC MOTOR,671CC

(PROPELLING) MOTOR ASSY

1шт.

57

NSS

NOT SOLD SEPARAT

Plate

1шт.

58

PM15V00021S058

SPOOL

1шт.

59

PM15V00004S002

GASKET

2шт.

60

PM15V00004S003

SPRING

2шт.

61

PU15V00003S314

PLUG

2шт.

62

PM15V00004S005

O-RING

2шт.

63

PM15V00004S025

SEAT

Plate, Thrust

2шт.

64

PM15V00004S026

COVER

2шт.

65

PM15V00021S065

CAP

2шт.

66

ZD12P02400

O-RING

2шт.

67

PM15V00004S029

ORIFICE

2шт.

68

NSS

NOT SOLD SEPARAT

Spool A

1шт.

69

NSS

NOT SOLD SEPARAT

Spool C

1шт.

70

PM15V00021S070

SPRING

1шт.

71

PU15V01003S027

PLUG

3шт.

72

ZD12P01100

O-RING

4шт.

73

2441U802S47

PLUG

3шт.

74

PM15V00021S074

ADAPTER

Union fitting

1шт.

75

PV15V00002S040

ORIFICE

4шт.

76

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

89

NSS

NOT SOLD SEPARAT

Plug

2шт.

90

NSS

NOT SOLD SEPARAT

Plug

1шт.

96

PV15V00002S040

ORIFICE

1шт.
