(07-014) - VALVE ASSY, CONTROL (ARM) (PM30V00054F1, PM30V00054F2)

Запчасти Case CX27B BTW (07-014) - VALVE ASSY, CONTROL (ARM) (PM30V00054F1, PM30V00054F2) (35) - HYDRAULIC SYSTEMS

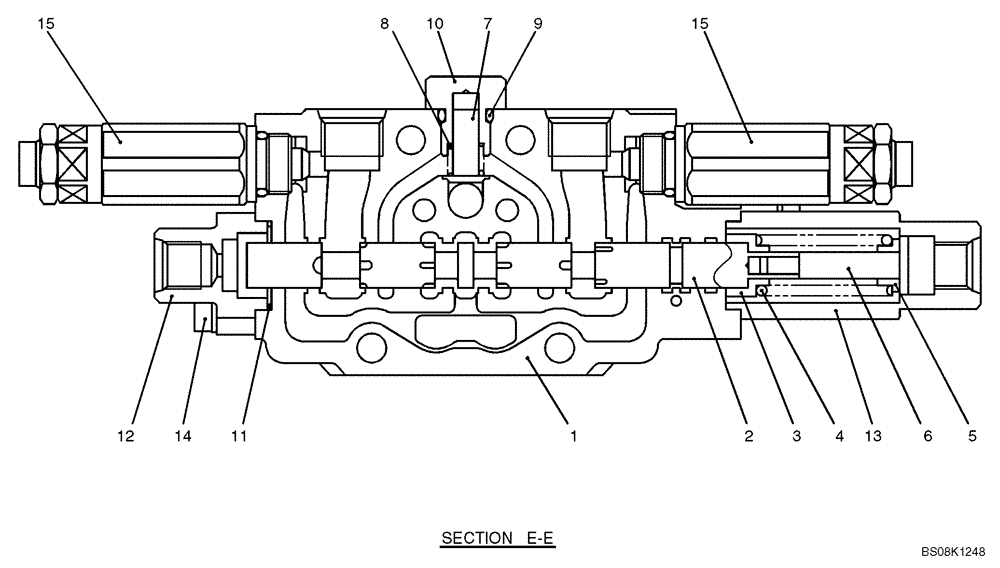

Схема запчастей Case CX27B BTW - (07-014) - VALVE ASSY, CONTROL (ARM) (PM30V00054F1, PM30V00054F2) (35) - HYDRAULIC SYSTEMS
2
4
15
15
5
1
7
9
14
12
11
8
3
6
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

(ARM) VALVE ASSY, CONTROL, PM30V00054F1, PM30V00054F2

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

Cap Screw

4шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

Assy, Overload Relief; See Figure 07- 015

2шт.

PM30V00042R100

REPAIR KIT

Includes Items 2, 3, 4, 5, 6 (F1 Only)

1шт.

PM30V00054R200

KIT, REPAIR, Includes Items 2, 3, 4, 5, 6 (F2 Only)

1шт.
