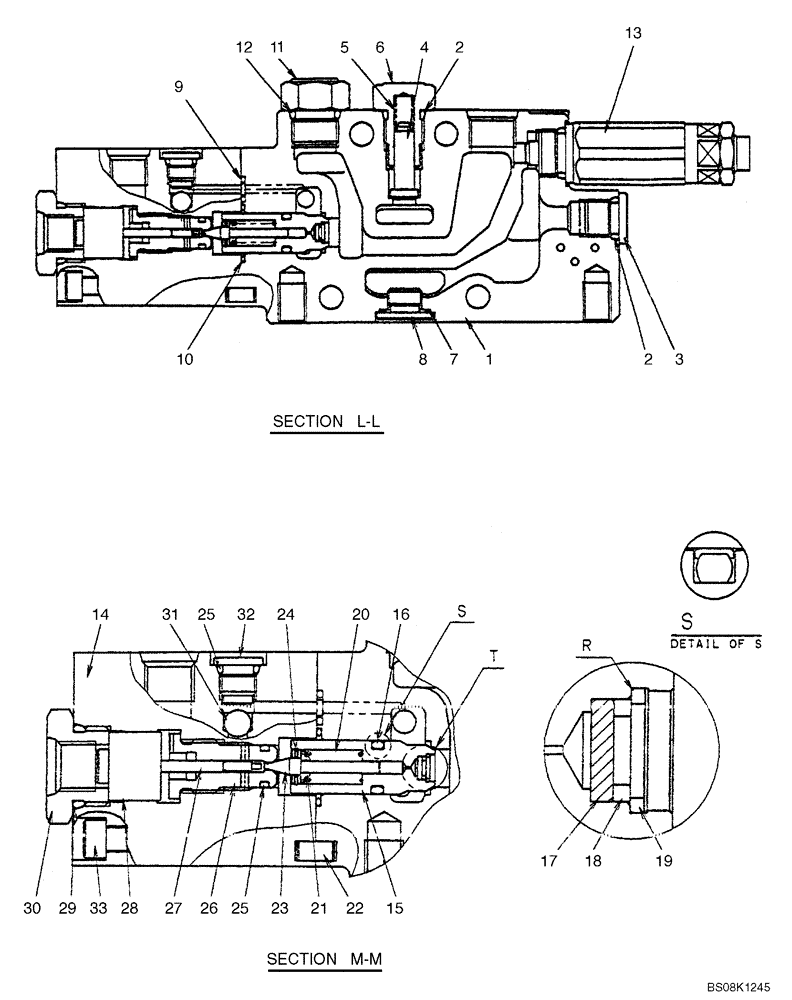

Запчасти Case CX27B BTW (07-011) - VALVE ASSY, CONTROL (BOOM LOCK) (PM30V00048F1) (35) - HYDRAULIC SYSTEMS

(BOOM LOCK) VALVE ASSY, CONTROL, PM30V00048F1

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

ZD12P01100

O-RING

2шт.

3

2436U1317S13

PLUG

1шт.

4

PW30V01009S002

POPPET

1шт.

5

PH30V00014S013

SPRING

1шт.

6

PW30V01009S005

PLUG

1шт.

7

2436R612S5

O-RING

1шт.

8

PW30V01011S015

PLUG

1шт.

9

ZD11P00600

O-RING

1шт.

10

PB30V00006S010

O-RING

1шт.

11

PR30V00007S014

PLUG

1шт.

12

ZD12P01400

O-RING

1шт.

13

PM22V00005F4

VALVE PRESSURE RELIE

Assy, Overload Relief; See Figure 07-015

1шт.

14

NSS

NOT SOLD SEPARAT

Cover

1шт.

15

NSS

NOT SOLD SEPARAT

Valve Lock

1шт.

16

NSS

NOT SOLD SEPARAT

Seal

1шт.

17

NSS

NOT SOLD SEPARAT

Filter

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer

1шт.

19

NSS

NOT SOLD SEPARAT

Ring, Retainer

1шт.

20

NSS

NOT SOLD SEPARAT

Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

22

NSS

NOT SOLD SEPARAT

Pin

2шт.

23

NSS

NOT SOLD SEPARAT

Poppet

1шт.

24

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

26

NSS

NOT SOLD SEPARAT

Guide, Piston

1шт.

27

NSS

NOT SOLD SEPARAT

Piston

1шт.

28

NSS

NOT SOLD SEPARAT

Piston

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

30

NSS

NOT SOLD SEPARAT

Connector

1шт.

31

NSS

NOT SOLD SEPARAT

Ball

1шт.

32

NSS

NOT SOLD SEPARAT

Plug

1шт.

33

NSS

NOT SOLD SEPARAT

Cap Screw

2шт.

PW30V01026R100

REPAIR KIT

Includes Items 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33

1шт.
