(07-009) - VALVE ASSY, CONTROL (TRAVEL LEFT) (PM30V00046F1, PM30V00046F2)

Запчасти Case CX27B BTW (07-009) - VALVE ASSY, CONTROL (TRAVEL LEFT) (PM30V00046F1, PM30V00046F2) (35) - HYDRAULIC SYSTEMS

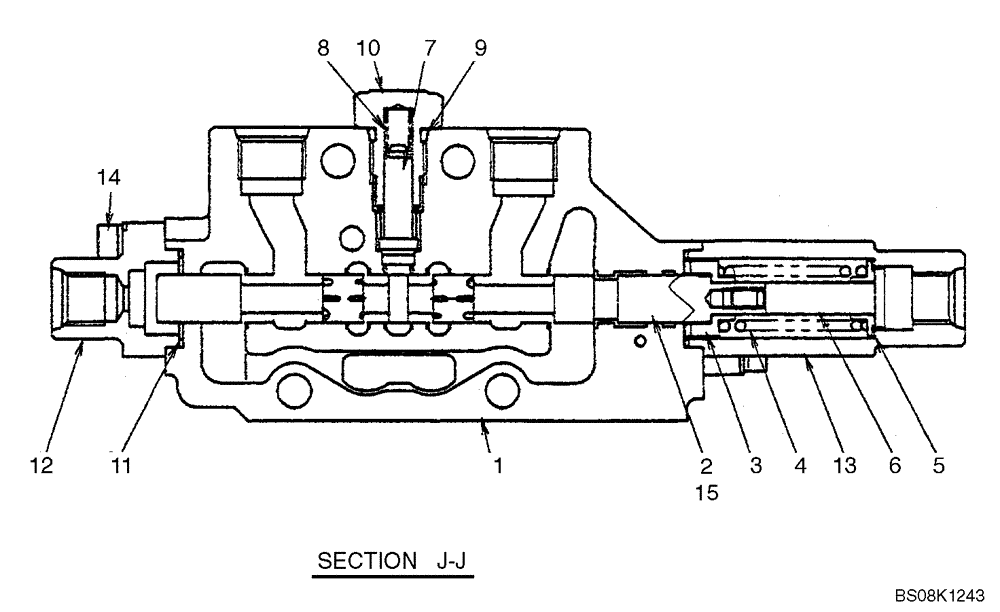

Схема запчастей Case CX27B BTW - (07-009) - VALVE ASSY, CONTROL (TRAVEL LEFT) (PM30V00046F1, PM30V00046F2) (35) - HYDRAULIC SYSTEMS
7
11
1
9
10
3
5
15
13
2
12
6
8
4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

VALVE ASSY, CONTROL PM30V00046F1, PM30V00046F2

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool (F1 Only)

1шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

PW30V01009S002

POPPET

1шт.

8

PH30V00014S013

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PW30V01009S005

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

Cap Screw

4шт.

15

NSS

NOT SOLD SEPARAT

Spool (F2 Only)

1шт.

PM30V00044R100

REPAIR KIT

Includes 2, 3, 4, 5, 6

1шт.

PM30V00044R200

REPAIR KIT

KIT, REPAIR, Includes 3, 4, 5, 6 And 15 (F2 Only)

1шт.
