(07-006) - VALVE ASSY, CONTROL (SERVICE) (PX30V00052F1, PX30V00052F2)

Запчасти Case CX27B BTW (07-006) - VALVE ASSY, CONTROL (SERVICE) (PX30V00052F1, PX30V00052F2) (35) - HYDRAULIC SYSTEMS

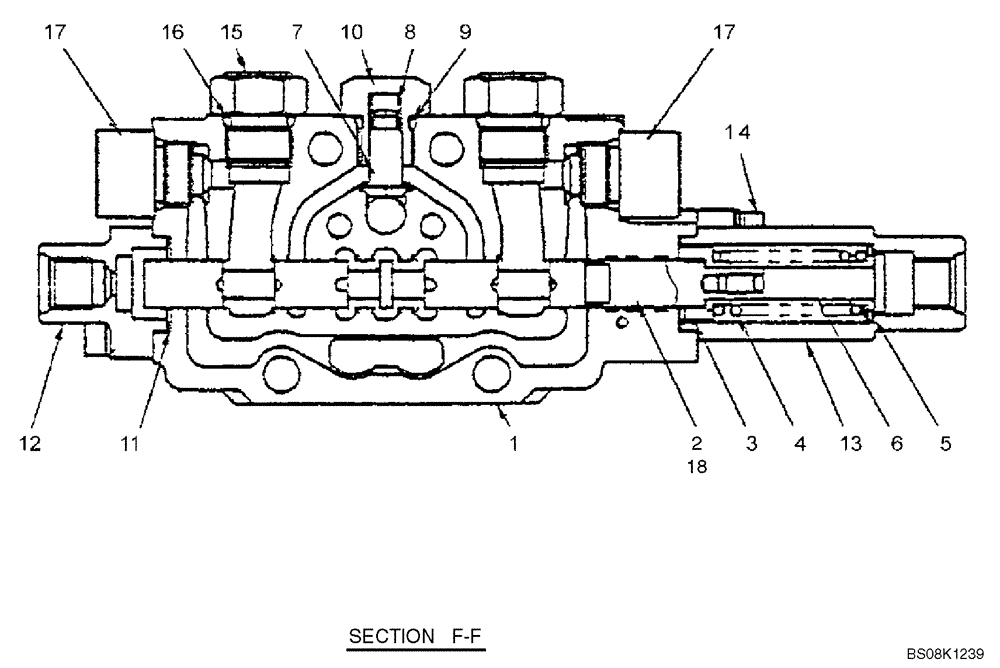

Схема запчастей Case CX27B BTW - (07-006) - VALVE ASSY, CONTROL (SERVICE) (PX30V00052F1, PX30V00052F2) (35) - HYDRAULIC SYSTEMS
1
4
9
17
13
2
18
14
10
12
8
6
7
11
5
17
16
3
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

VALVE ASSY, CONTROL, PX30V00052F1, PX30V00052F2

1шт.

1

NSS

NOT SOLD SEPARAT

Body (F1 Only)

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat Spring

1шт.

6

NSS

NOT SOLD SEPARAT

End Spool

1шт.

7

PF30V00005S009

POPPET

1шт.

8

PF30V00005S010

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PF30V00005S012

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

4шт.

15

PR30V00007S014

PLUG

2шт.

16

ZD12P01400

O-RING

2шт.

17

PH50T00001F1

PLUG

Assy; See Figure 07-042

2шт.

18

NSS

NOT SOLD SEPARAT

Spool (F2 Only)

1шт.

PX30V00052R100

REPAIR KIT

Consists Of Items 2, 3, 4, 5, 6 (F1 Only)

1шт.

PX30V00052R200

REPAIR KIT

KIT, REPAIR, Includes Items 3, 4, 5, 6, And 18 (F2 Only)

1шт.
