(07-004) - VALVE ASSY, CONTROL (SLEWING) (PM30V00040F1, PM30V00040F2)

Запчасти Case CX27B BTW (07-004) - VALVE ASSY, CONTROL (SLEWING) (PM30V00040F1, PM30V00040F2) (35) - HYDRAULIC SYSTEMS

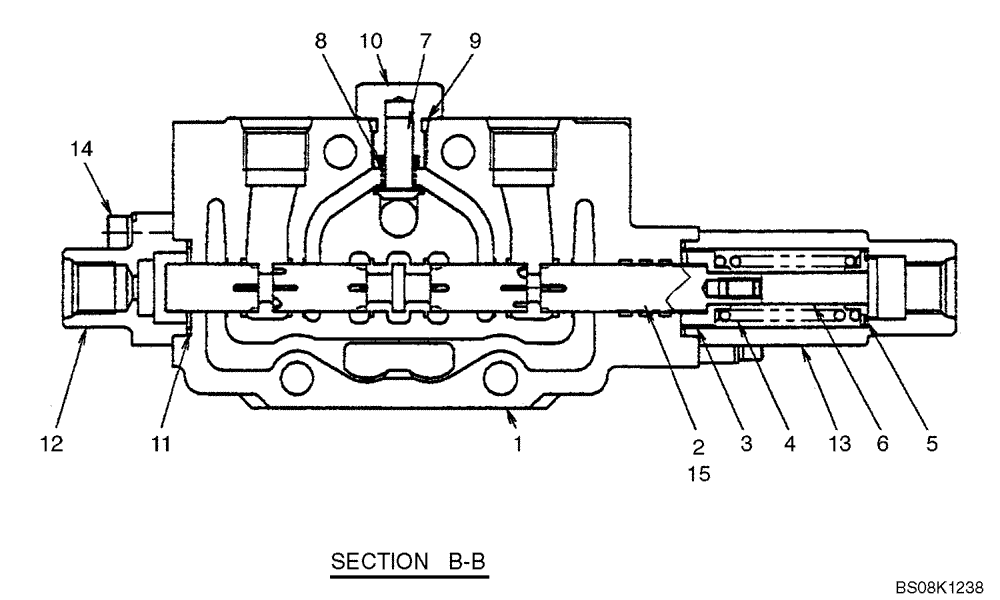

Схема запчастей Case CX27B BTW - (07-004) - VALVE ASSY, CONTROL (SLEWING) (PM30V00040F1, PM30V00040F2) (35) - HYDRAULIC SYSTEMS
13
7
4
14
9
6
10
5
8
15
2
11
12
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

VALVE ASSY, CONTROL, PM30V00040F1, PM30V00040F2

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool (F1 Only)

1шт.

3

NSS

NOT SOLD SEPARAT

Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

4шт.

15

NSS

NOT SOLD SEPARAT

Spool (F2 Only)

1шт.

PM30V00040R100

REPAIR KIT

Includes Items 2, 3, 4, 5, 6 (F1 Only)

1шт.

PM30V00040R200

REPAIR KIT

KIT, REPAIR, Includes Items 3, 4, 5, 6 And 15 (F2 Only)

1шт.
