(07-003) - VALVE ASSY, CONTROL (DOZER) (PM30V00039F1, PM30V00039F2)

Запчасти Case CX27B BTW (07-003) - VALVE ASSY, CONTROL (DOZER) (PM30V00039F1, PM30V00039F2) (35) - HYDRAULIC SYSTEMS

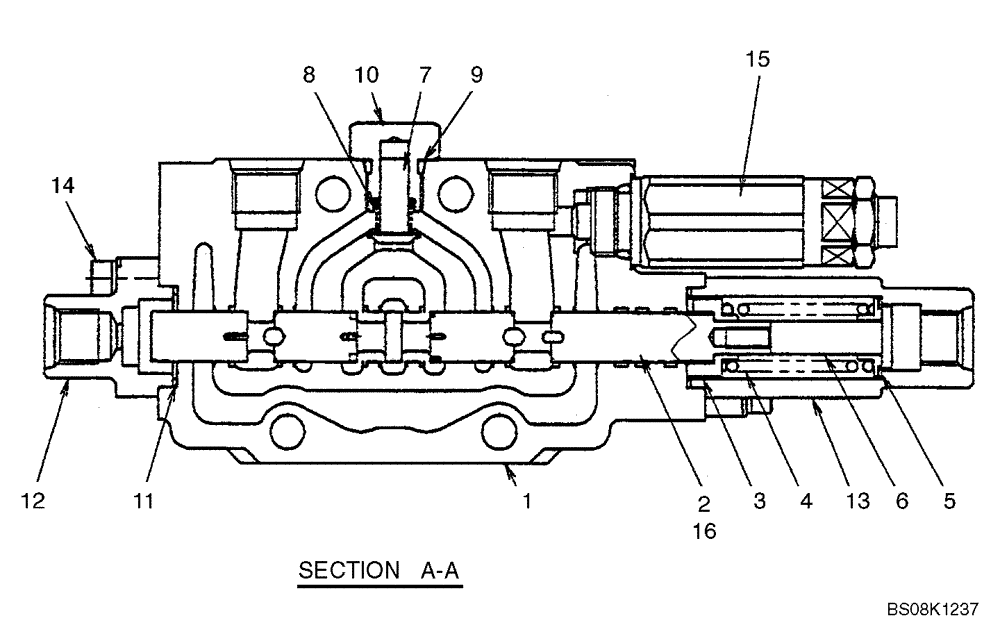

Схема запчастей Case CX27B BTW - (07-003) - VALVE ASSY, CONTROL (DOZER) (PM30V00039F1, PM30V00039F2) (35) - HYDRAULIC SYSTEMS
2
13
12
6
11
15
14
4
16
1
9
10
7
3
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

VALVE ASSY, CONTROL, PM30V00039F1, PM30V00039F2

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool (F1 Only)

1шт.

3

NSS

NOT SOLD SEPARAT

Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

4шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

Assy; See Figure(s) 07-012, And 07-015

1шт.

16

NSS

NOT SOLD SEPARAT

Spool (F2 Only)

1шт.

PM30V00039R100

REPAIR KIT

Includes Items 2, 3, 4, 5, 6 (F1 Only)

1шт.

PM30V00039R200

REPAIR KIT

KIT, REPAIR, Includes Items 3, 4, 5, 6 And 16 (F2 Only)

1шт.
