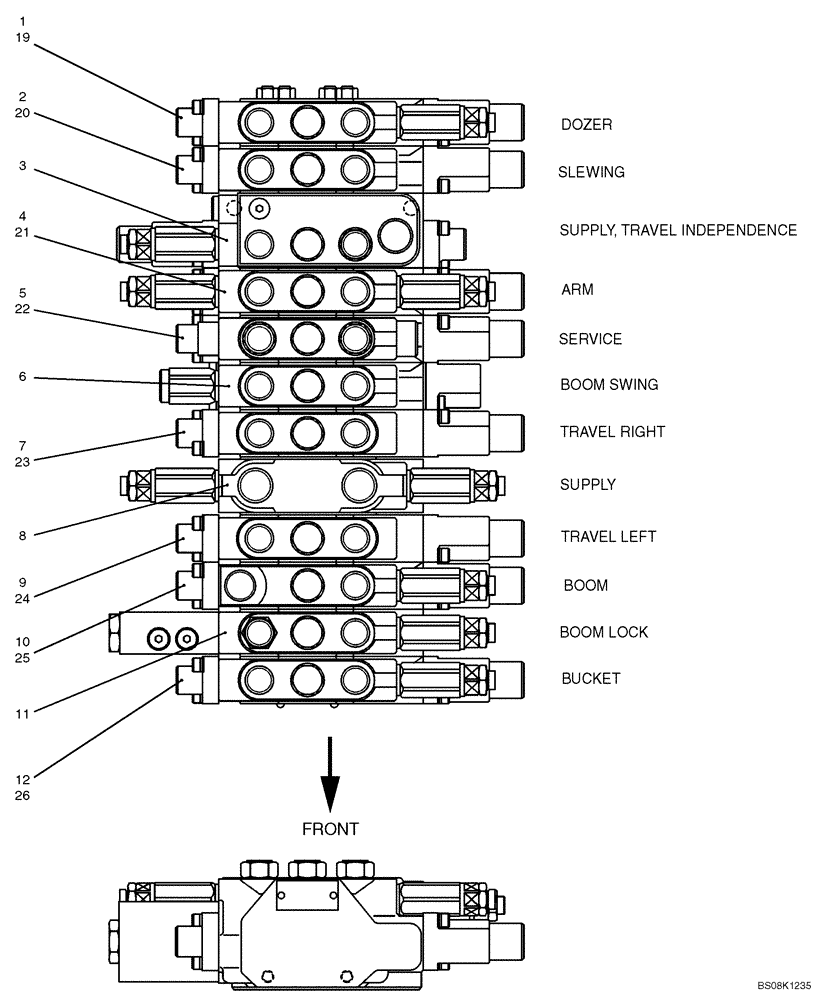

Запчасти Case CX27B BTW (07-001) - VALVE ASSY, CONTROL 1 OF 2 (PM30V00051F1, PM30V00051F2) (35) - HYDRAULIC SYSTEMS

VALVE ASSY, CONTROL, PM30V00051F1, PM30V00051F2

1шт.

1

PM30V00039F1

VALVE

Control Assy (Dozer) See Figure 07-003

1шт.

2

PM30V00040F1

CONTROL VALVE

Assy (Slewing) See Figure 07-004

1шт.

3

PM30V00053F1

VALVE

VALVE, Control Assy (Supply, Travel Independence) See Figure 07-013

1шт.

4

PM30V00054F1

VALVE

VALVE, Control Assy (Arm) See Figure 07-014

1шт.

5

PX30V00052F1

VALVE SECTION

Control Assy (Service) See Figure 07-006

1шт.

6

PX30V00043F2

HYDRAULIC VALVE

Assy (Boom Swing) See Figure 07-005

1шт.

7

PM30V00044F1

VALVE

Control Assy (Travel Right) See Figure 07-007

1шт.

8

PM30V00045F1

VALVE

Control Assy (Supply)

1шт.

9

PM30V00046F1

VALVE

Control Assy (Travel Left) See Figure 07-009

1шт.

10

PM30V00047F1

VALVE

Control Assy (Boom) See Figure 07-010

1шт.

11

PM30V00048F1

VALVE SECTION

Control Assy (Boom Lock) See Figure 07-011

1шт.

12

PM30V00049F1

VALVE

Control Assy (Bucket) See Figure 07-012

1шт.

19

PM30V00039F2

VALVE

VALVE, Control Assy (Dozer)

1шт.

20

PM30V00040F2

VALVE

VALVE, Control Assy (Slewing)

1шт.

21

PM30V00054F2

VALVE

VALVE, Control Assy (Arm)

1шт.

22

PX30V00052F2

VALVE SECTION

VALVE, Control Assy (Service)

1шт.

23

PM30V00044F2

VALVE

VALVE, ConTrol Assy (Travel Right)

1шт.

24

PM30V00046F2

VALVE

VALVE, Control Assy (Travel Left)

1шт.

25

PM30V00047F2

VALVE

VALVE, Control Assy (Boom)

1шт.

26

PM30V00049F2

VALVE

VALVE, Control Assy (Bucket)

1шт.
