(05-011) - HYD LINES, ARM 1.37M (PV43H00015F1, PV12B00113F1, PM43H00021F1

Запчасти Case CX27B BTW (05-011) - HYD LINES, ARM 1.37M (PV43H00015F1, PV12B00113F1, PM43H00021F1 (35) - HYDRAULIC SYSTEMS

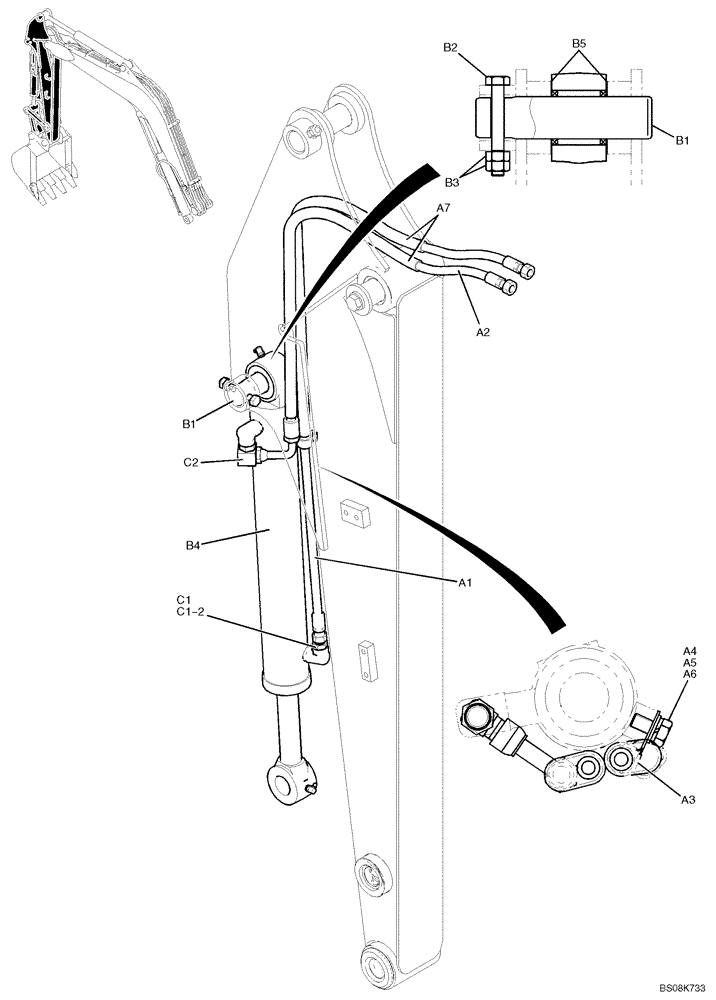

Схема запчастей Case CX27B BTW - (05-011) - HYD LINES, ARM 1.37M (PV43H00015F1, PV12B00113F1, PM43H00021F1 (35) - HYDRAULIC SYSTEMS
a7
b1
a3
b3
c1
c2
b4
a4
b2
a2
a6
b1
b5
c1-2
a1
a5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HYDRAULIC LINES, ARM , PV43H00015F1

1шт.

a1

PM42H01144D5

HOSE,9.5mm ID x 1410mm L

HDRAULIC LINES, Arm

1шт.

a2

PX42H01169D8

HOSE,9.5mm ID x 1040mm L

1шт.

a3

ZC46X16011

CLIP

1шт.

a4

ZW16X10000

WASHER

1шт.

a5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

a6

ZW26X10000

LOCK WASHER

1шт.

a7

2414Z199D080

PROTECTIVE SLEEVE

HOSE, Guard

2шт.

CYLINDER INSTAL, PV12B00113F1

1шт.

b1

PM12B01348P1

PIN,35mm OD x 145mm L

1шт.

b2

HS18C10075G2

SCREW

Cap

1шт.

b3

ZN18C10008

NUT

2шт.

b4

PV01V00063F1

CYLINDER,Double Acting, 35mm Rod, 417mm Stroke

Assy, Buckey; See Figure 07-033

1шт.

b5

PR02B01109P1

SHIM,0.5mm Thk

2шт.

HRAULIC LINES, CYLINDER, PM43H00021F1

1шт.

c1

HH25S06006G1

HYD CONNECTOR

1шт.

c1-2

ZD12P01400

O-RING

1шт.

c2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.
