(03-008) - HYDRAULIC LINES ARM 1.12M (3FT 8 IN) (PV43H00014F1, PV12B00113F1, PM43H00021F1)

Запчасти Case CX27B BTW (03-008) - HYDRAULIC LINES ARM 1.12M (3FT 8 IN) (PV43H00014F1, PV12B00113F1, PM43H00021F1) (35) - HYDRAULIC SYSTEMS

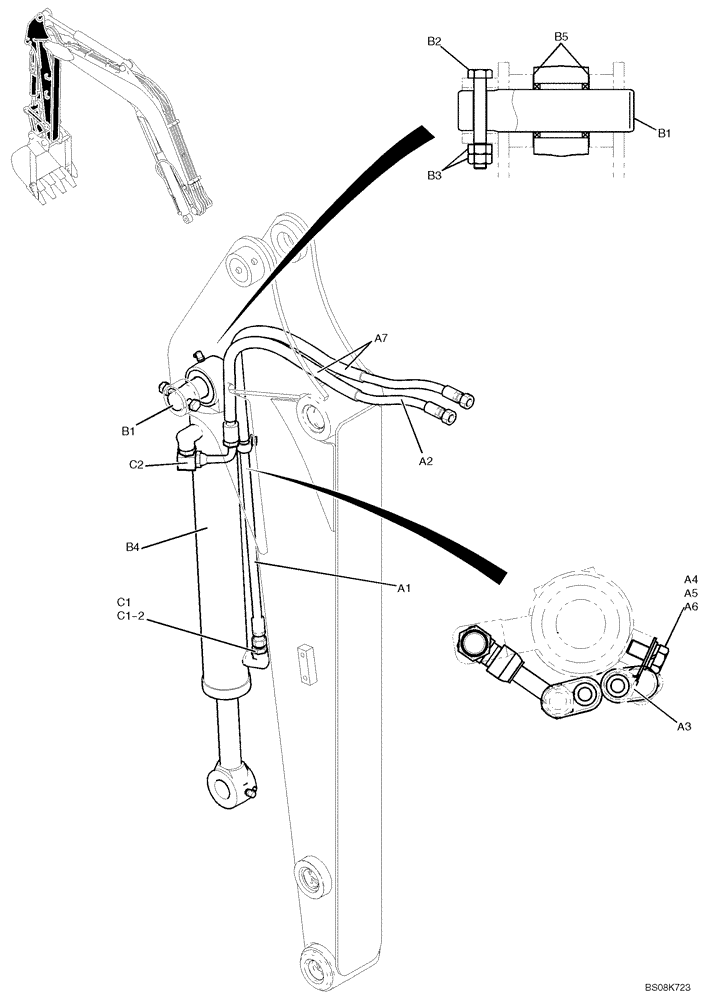

Схема запчастей Case CX27B BTW - (03-008) - HYDRAULIC LINES ARM 1.12M (3FT 8 IN) (PV43H00014F1, PV12B00113F1, PM43H00021F1) (35) - HYDRAULIC SYSTEMS
b1
a3
a4
b5
b3
c1-2
a6
b2
b1
c2
a1
a2
a5
c1
b4
a7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HYDRAULIC LINES ,ARM, PV43H00014F1

1шт.

a1

PM42H01144D8

HOSE

1шт.

a2

PX42H01169D7

HOSE,9.5mm ID x 860mm L

1шт.

a3

ZC46X16011

CLIP

1шт.

a4

ZW16X10000

WASHER

1шт.

a5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

a6

ZW26X10000

LOCK WASHER

1шт.

a7

2414Z199D060

PROTECTIVE SLEEVE

Guard

2шт.

CYLINDER INSTAL, PV12B00113F1

1шт.

b1

PM12B01348P1

PIN,35mm OD x 145mm L

1шт.

b2

HS18C10075G2

SCREW

Cap

1шт.

b3

ZN18C10008

NUT

2шт.

b4

PV01V00063F1

CYLINDER,Double Acting, 35mm Rod, 417mm Stroke

Assy, Bucket; See Figure 07-033

1шт.

b5

PR02B01109P1

SHIM,0.5mm Thk

2шт.

HYDRAULIC LINES, CYLINDER, PM43H00021F1

1шт.

c1

HH25S06006G1

HYD CONNECTOR

1шт.

c1-2

ZD12P01400

O-RING

1шт.

c2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.
