(03-005) - CYLINDER INSTAL (CAB) (PV02B00166F1, PV02B00154F1)

Запчасти Case CX27B BTW (03-005) - CYLINDER INSTAL (CAB) (PV02B00166F1, PV02B00154F1) (35) - HYDRAULIC SYSTEMS

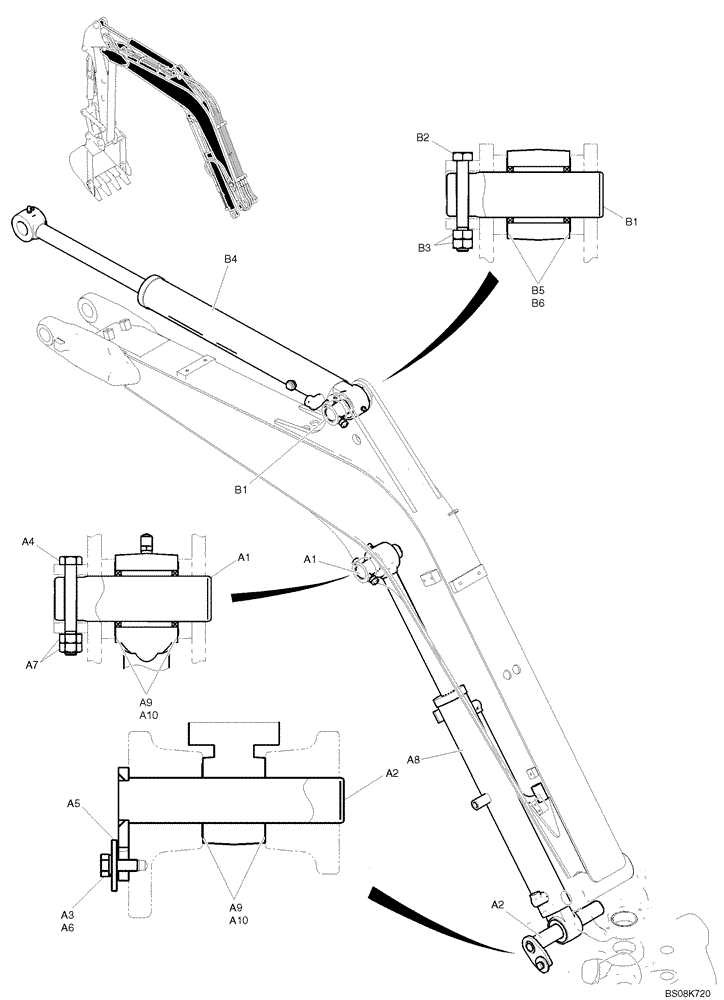

Схема запчастей Case CX27B BTW - (03-005) - CYLINDER INSTAL (CAB) (PV02B00166F1, PV02B00154F1) (35) - HYDRAULIC SYSTEMS
a10
b5
a4
a7
b2
a1
a2
b4
b1
a1
a9
a9
a8
a3
b3
b6
b1
a10
a6
a5
a2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

CYLINDER INSTAL, PV02B00166F1

1шт.

a1

PM02B01321P1

PIN,40mm OD x 138mm L

1шт.

a2

PM02B01391P1

PIN

1шт.

a3

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

a4

HS18C10080G3

BOLT

Cap

1шт.

a5

2418T21137

WASHER

1шт.

a6

ZW26X10000

LOCK WASHER

1шт.

a7

ZN18C10008

NUT

2шт.

a8

PV01V00064F1

CYLINDER,Double Acting, 40mm Rod, 455mm Stroke

Assy, Boom; See Figure 07-031

1шт.

a9

PR02B01123D1

SHIM,0.9mm Thk

2шт.

a10

PR02B01107P1

SHIM,0.5mm Thk

3шт.

CYLINDER INSTAL, PV02B00154F1

1шт.

b1

PM02B01321P1

PIN,40mm OD x 138mm L

1шт.

b2

HS18C10080G3

BOLT

Cap

1шт.

b3

ZN18C10008

NUT

2шт.

b4

PV01V00062F1

CYLINDER

Assy, Arm; See Figure 07-032

1шт.

b5

PR02B01123D1

SHIM,0.9mm Thk

1шт.

b6

PR02B01107P1

SHIM,0.5mm Thk

2шт.
