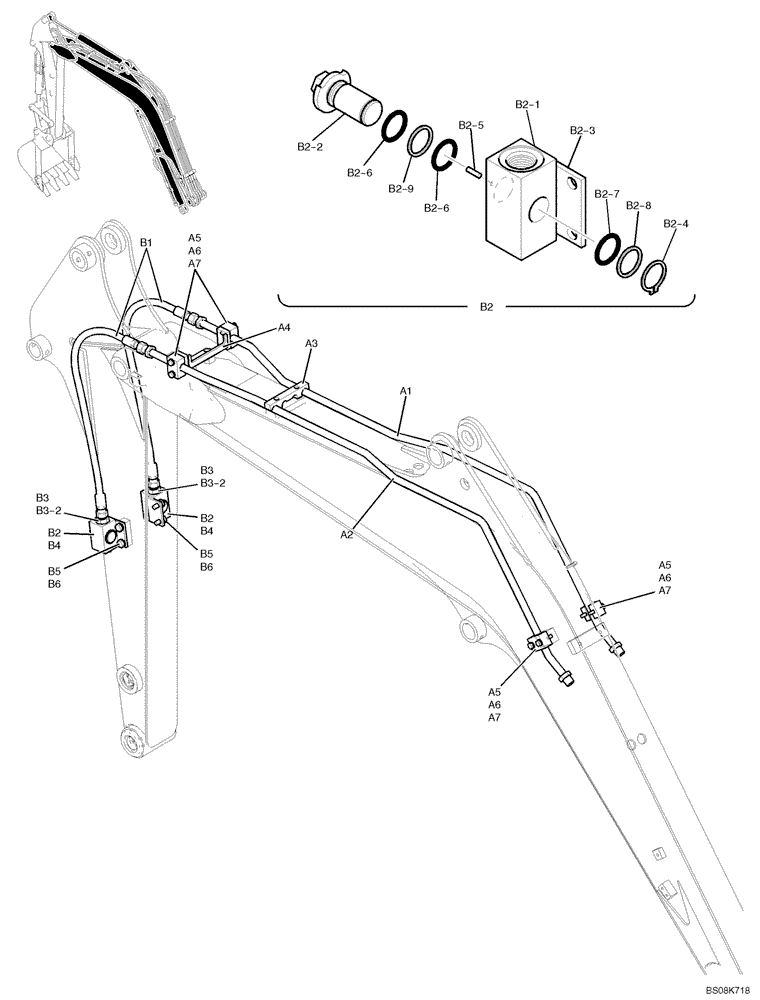

Запчасти Case CX27B BTW (03-003) - HYDRAULIC LINES, BOOM 2.15 M (NIBBLER & BREAKER) (PV42H00021F1,PV43H00010F1) (35) - HYDRAULIC SYSTEMS

HYDRAULIC LINES, BOOM, PV42H00021F1

1шт.

a1

PV42H01045P1

TUBE

1шт.

a2

PV42H01046P1

TUBE

1шт.

a3

PX42H01080P1

CLAMP

1шт.

a4

PM42H01113P1

BRACKET

1шт.

a5

PX43H01017P1

CLAMP

4шт.

a6

ZS18C08040

SCREW,Hex, M8 x 40mm

Cap

8шт.

a7

ZW26X08000

LOCK WASHER

Lock

8шт.

HYDRAULIC LINES, ARM, PV43H00010F1

1шт.

b1

HX55L08074DY

HOSE ASSY.

2шт.

b2

PF25V00001F2

VALVE

Assy, Stop

2шт.

b2-1

PF25V00001S001

BODY

Valve, (with 1/2" Pipe Thread)

1шт.

b2-2

PF25V00001S002

SHAFT

1шт.

b2-3

PF25V00001S003

PLATE

1шт.

b2-4

ZR16X03000

SNAP RING

Snap

1шт.

b2-5

ZD26D05010

SPRING

PIN, Spring

1шт.

b2-6

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

2шт.

b2-7

ZD12G03000

O-RING,29.40mm ID x 35.60mm OD x 3.10mm

1шт.

b2-8

ZD75G03000

BACK-UP RING

1шт.

b2-9

ZD75G02500

BACK-UP RING

1шт.

b3

HH25S08008G1

HYD CONNECTOR

2шт.

b3-2

ZD12P01800

O-RING

2шт.

b4

ZE72X08000

PLUG

2шт.

b5

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

4шт.

b6

ZW26X10000

LOCK WASHER

4шт.
