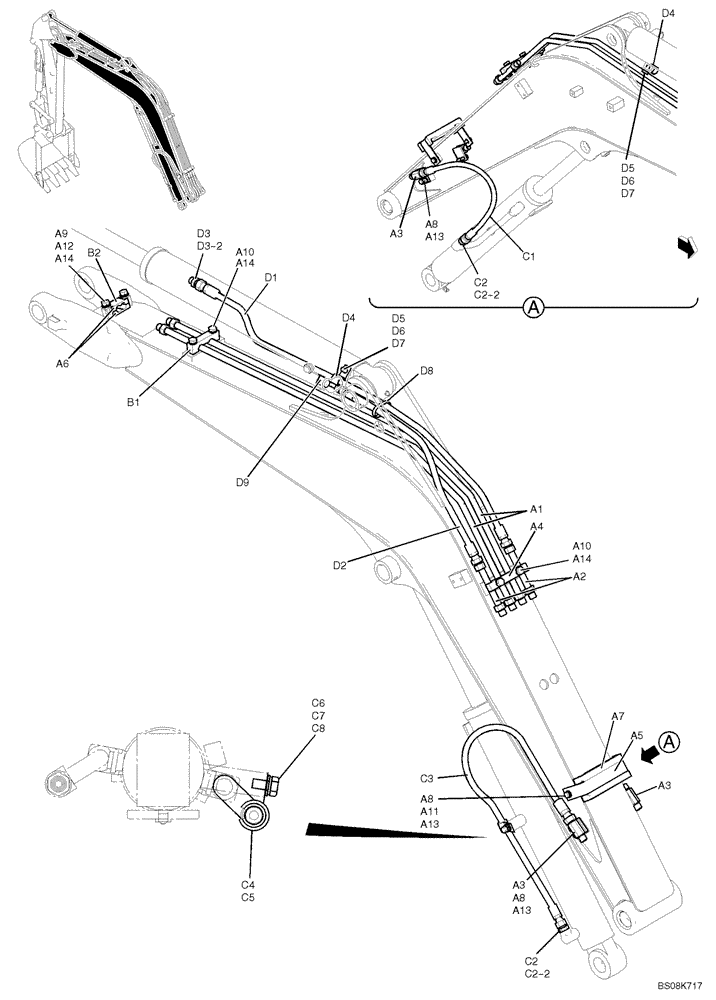

Запчасти Case CX27B BTW (03-002) - HYDRAULIC LINES, BOOM 2.15M (PV42H00039F1, PV42H00022F1, PV42H00041F1, PV42H00042F1) (35) - HYDRAULIC SYSTEMS

HYDDRAULIC LINES, BOOM, PV42H00039F1

1шт.

a1

PV42H01044P1

TUBE

2шт.

a2

PM42H01110P1

TUBE

2шт.

a3

PX42H01166P1

HYD CONNECTOR

CONNECTOR

2шт.

a4

PX42H01084P1

CLAMP

1шт.

a5

PV42H01057P2

COVER

COVER

1шт.

a6

PM42H01063P1

RUBBER

2шт.

a7

PV42H01058P1

RUBBER

1шт.

a8

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

6шт.

a9

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

a10

ZS18C10040

SCREW,Hex, M10 x 40mm

Cap

4шт.

a11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

a12

ZW16X10000

WASHER

2шт.

a13

ZW26X08000

LOCK WASHER

Lock

6шт.

a14

ZW26X10000

LOCK WASHER

6шт.

HYDRAULIC LINES, BOOM, PV42H00022F1

1шт.

b1

PX42H01083P1

CLAMP

1шт.

b2

PX42H01085P1

PLATE

1шт.

HYDRAULIC LINES, CYLINDER, PV42H00041F1

1шт.

c1

PW42H01104D9

HOSE,9.5mm ID x 670mm L

1шт.

c2

HH25S06006G1

HYD CONNECTOR

2шт.

c2-2

ZD12P01400

O-RING

2шт.

c3

PW42H01104D5

HOSE,9.5mm ID x 950mm L

1шт.

c4

ZC46X25011

CLIP

1шт.

c5

PX42H01171P1

BUSHING

BUSHING

1шт.

c6

ZW16X10000

WASHER

1шт.

c7

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

c8

ZW26X10000

LOCK WASHER

1шт.

HYDRAULIC LINES, CYLINDER, PV42H00042F1

1шт.

d1

PW42H01104DC

HOSE,9.5mm ID x 1160mm L

1шт.

d2

PX42H01170D3

HYDRAULIC HOSE

HOSE

1шт.

d3

HH25S06006G1

HYD CONNECTOR

1шт.

d3-2

ZD12P01400

O-RING

1шт.

d4

ZC46X19011

CLIP

1шт.

d5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

d6

ZW26X10000

LOCK WASHER

1шт.

d7

ZW16X10000

WASHER

1шт.

d8

PY01P01043D8

CABLE TIE,102mm L

1шт.

d9

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.
