Запчасти Case CX27B BTW (02-010) - HYDRAULIC LINES, LOW (PV02H00006F1, PV19H00006F1, PM12H00002F1, PM13H00001F1) (35) - HYDRAULIC SYSTEMS

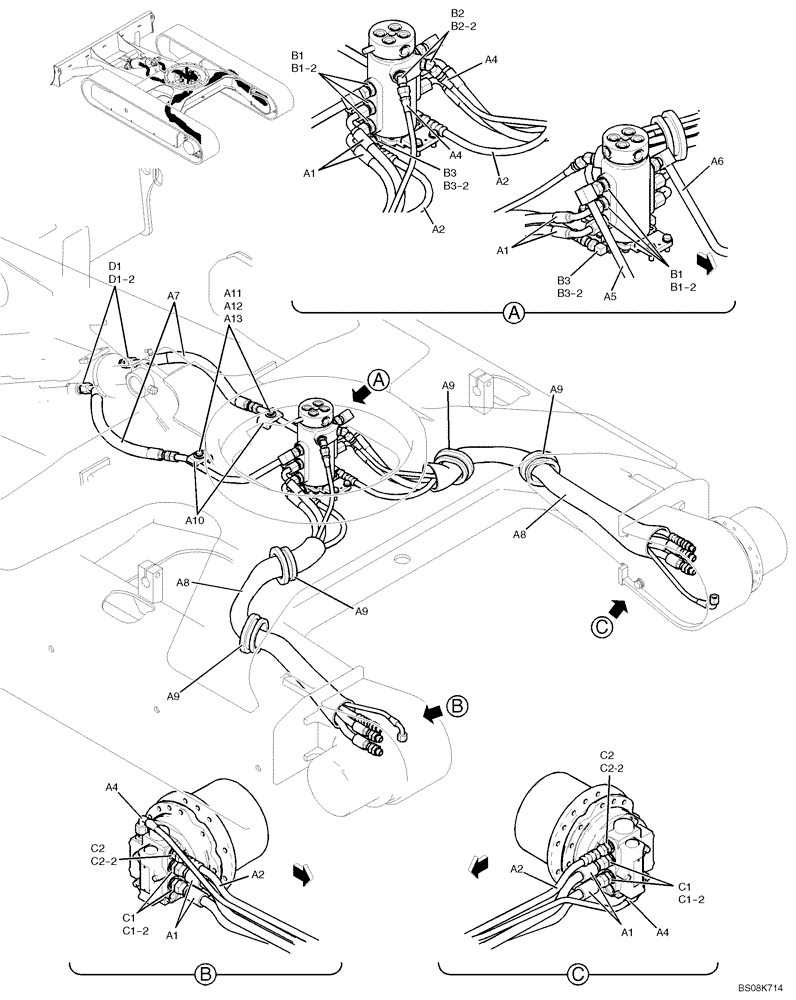

Схема запчастей Case CX27B BTW - (02-010) - HYDRAULIC LINES, LOW (PV02H00006F1, PV19H00006F1, PM12H00002F1, PM13H00001F1) (35) - HYDRAULIC SYSTEMS
a4
c1
a2
a12
c1
c2-2
b1-2
a9
b3-2
a9
b3-2
a8
a6
a12
b1
a5
b2-2
c1-2
c2
a9
b3
a1
a1
a4
c2-2
b3
a8
d1
a2
a13
a2
b2
a4
a9
d1-2
a10
a1
b1
b1-2
a7
a2
c1-2
c2
a4
a1

Артикул

Название

Примечание

Количество

HYDRAULIC LINES, LOW, PV02H00006F1

1шт.

a1

PM02H01011D4

HOSE,9.5mm ID x 1050mm L

4шт.

a2

HX23L04110DX

HOSE,6.3mm ID x 1100mm L

2шт.

a4

PM02H01009D4

HOSE,5.1mm ID x 1200mm L

2шт.

a5

PV02H01015P1

TUBE

1шт.

a6

PV02H01016P1

TUBE

1шт.

a7

PV02H01012D1

HOSE,9.5mm ID x 400mm L

2шт.

a8

PW01P01003DC

HOSE,45mm ID x 730mm L

2шт.

a9

PX02H01001P1

GROMMET

4шт.

a10

PW02F01049P1

CLAMP

2шт.

a11

PV01P01007P1

WASHER

2шт.

a12

ZW26X08000

LOCK WASHER

Lock

2шт.

a13

ZS18C08035

SCREW,Hex, M8 x 35mm

Cap

2шт.

HYDRAULIC LINES, SWIVEL, PV19H00006F1

1шт.

b1

HH25S06006G1

HYD CONNECTOR

6шт.

b1-2

ZD12P01400

O-RING

6шт.

b2

HH45S04004G1

45 ELBOW

2шт.

b2-2

ZD12P01100

O-RING

2шт.

b3

HH35S04004G1

90 ELBOW

2шт.

b3-2

ZD12P01100

O-RING

2шт.

HYDRAULIC LINES, PROPEL, PM12H00002F1

1шт.

c1

HH25S06006G1

HYD CONNECTOR

4шт.

c1-2

ZD12P01400

O-RING

4шт.

c2

HH25S04004G1

HYD CONNECTOR

2шт.

c2-2

ZD12P01100

O-RING

2шт.

HYDRAULIC LINES, CYLINDER, PM13H00001F1

1шт.

d1

HH25S06006G1

HYD CONNECTOR

2шт.

d1-2

ZD12P01400

O-RING

2шт.

Выбрано товаров: 28
