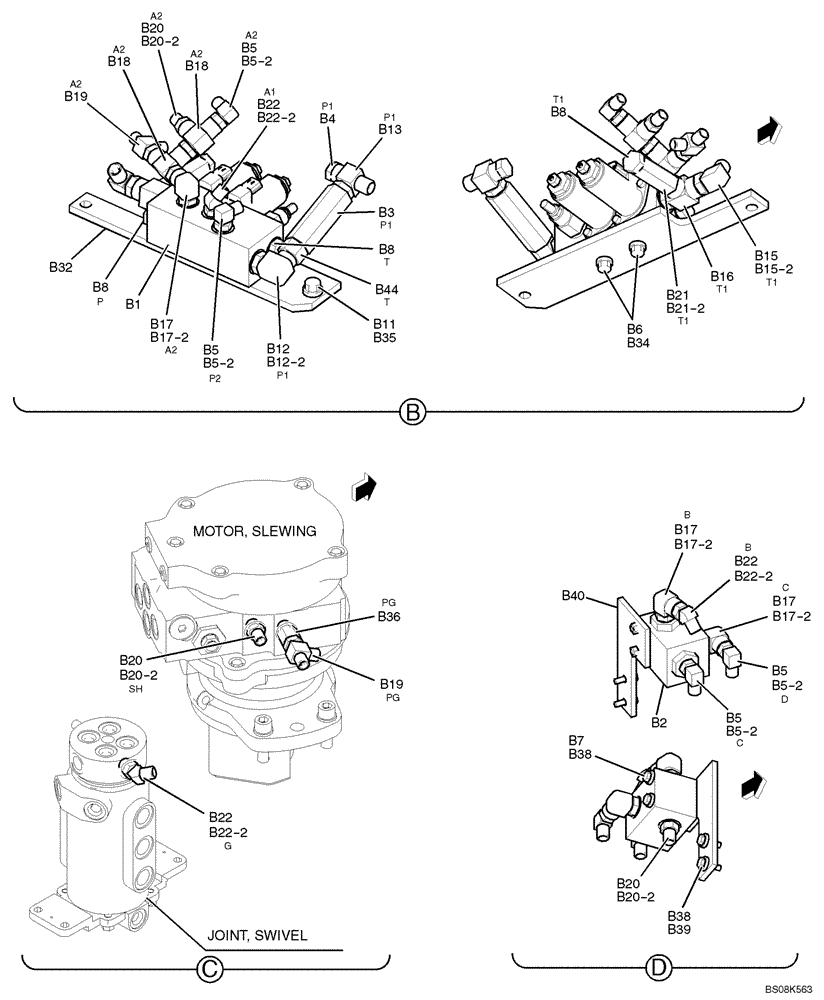

Запчасти Case CX27B BTW (01-039) - CONTROL LINES, REMOTE 2 OF 2 (PM64H00048F1) (35) - HYDRAULIC SYSTEMS

CONTROL LINES, VALVE PM64H00048F1

1шт.

b1

PX35V00003F1

VALVE

Assy, Solenoid; See Figure 07-039

1шт.

b2

PH26V00001F1

VALVE

Assy, Shuttle

1шт.

b3

YN50V00020F1

HYDRAULIC OIL FILTER

Assy, Inline

1шт.

b4

ZE72X04000

PLUG

1шт.

b5

HH35S04004G1

90 ELBOW

4шт.

b5-2

ZD12P01100

O-RING

4шт.

b6

ZW16H08000

WASHER

2шт.

b7

ZS18C06065

SCREW,Hex, M6 x 65mm

Cap

2шт.

b8

ZE72X06000

PLUG

3шт.

b11

ZW16H10000

WASHER

2шт.

b12

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

b12-2

ZD12P01400

O-RING

1шт.

b13

PF30H01004P1

TEE

1шт.

b15

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

b15-2

ZD12P01400

O-RING

1шт.

b16

HH55Q06006G1

TEE

1шт.

b17

2444Z2894

90 ELBOW

3шт.

b17-2

ZD12P01100

O-RING

3шт.

b18

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

2шт.

b19

HH55L04004G1

TEE

2шт.

b20

HH25S04004G1

HYD CONNECTOR

3шт.

b20-2

ZD12P01100

O-RING

3шт.

b21

2444P1098D2

HYD CONNECTOR

1шт.

b21-2

ZD12P01400

O-RING

1шт.

b22

HH45S04004G1

45 ELBOW

3шт.

b22-2

ZD12P01100

O-RING

3шт.

b32

PM64H01059P1

BRACKET

1шт.

b34

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

b35

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

b36

2444Z2525

HYD CONNECTOR

1шт.

b38

ZW16H06000

WASHER

4шт.

b39

ZS18C06020

SCREW,Hex, M6 x 20mm

Cap

2шт.

b40

PM64H01063P1

BRACKET

1шт.

b44

2444Z3326

HYD CONNECTOR

CONNECTOR

1шт.
