Запчасти Case CX27B BTW (01-038) - CONTROL LINES REMOTE 1 OF 2 (PM62H00010F1, PM64H00048F1) (35) - HYDRAULIC SYSTEMS

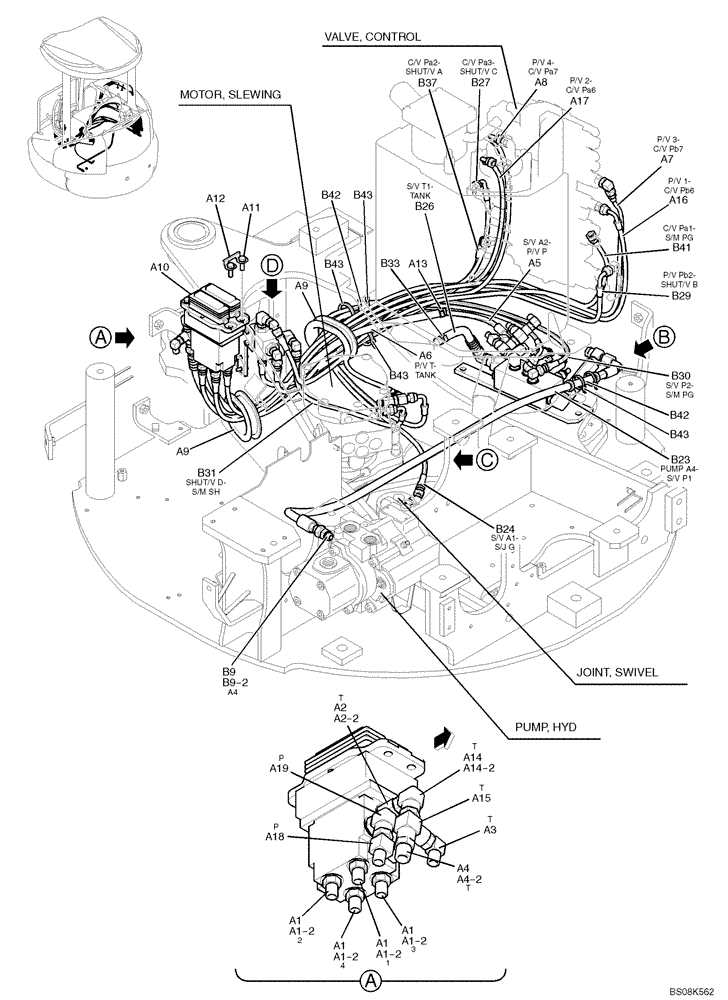

Схема запчастей Case CX27B BTW - (01-038) - CONTROL LINES REMOTE 1 OF 2 (PM62H00010F1, PM64H00048F1) (35) - HYDRAULIC SYSTEMS
a12
b30
a16
b43
a4
b9-2
b43
b23
a1-2
a3
a2-2
a14
a9
a8
a5
b31
b33
a19
b42
a13
b27
b37
a9
a14-2
b41
a1-2
a4-2
a1
b26
b42
b43
a18
b43
a1
a1-2
a17
a1
a10
a11
a7
a1-2
a2
b9
a6
a1
a15
b29
b24

Артикул

Название

Примечание

Количество

CONTROL LINES, PROPEL, PM62H00010F1

1шт.

a1

HH25S04004G1

HYD CONNECTOR

4шт.

a1-2

ZD12P01100

O-RING

1шт.

a2

2444Z2525

HYD CONNECTOR

1шт.

a2-2

ZD12P01100

O-RING

1шт.

a3

HH35S04004G1

90 ELBOW

W/Filter

1шт.

a4

HH25S06004G3

HYD CONNECTOR

1шт.

a4-2

ZD12P01100

O-RING

1шт.

a5

HX34L04105DX

HYDRAULIC HOSE

HOSE

1шт.

a6

PW68H01023DB

HOSE,9.5mm ID x 760mm L

1шт.

a7

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

a8

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

a9

PW62H01001P1

GROMMET

2шт.

a10

PM30V00019F6

PILOT VALVE

Assy; See Figure 07-038

1шт.

a11

ZS18C08025

SCREW,Hex, M8 x 25mm

Cap

4шт.

a12

PW62H01003P1

PLATE

2шт.

a13

ZC16X01800

CLIP

1шт.

a14

2444Z2894

90 ELBOW

1шт.

a14-2

ZD12P01100

O-RING

1шт.

a15

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a16

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

a17

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

1шт.

a18

HH55L04004G1

TEE

1шт.

a19

PH62H01003P1

ELBOW

1шт.

CONTROL LINES, VALVE, PM64H00048F1

1шт.

b9

HH25S06006G1

HYD CONNECTOR

1шт.

b9-2

ZD12P01400

O-RING

1шт.

b23

HX35L06120DY

HOSE,9.5mm ID x 1200mm L

1шт.

b24

HX33L03115DX

HOSE,4.8mm ID x 1150mm L

1шт.

b26

PW68H01023D6

HOSE,9.5mm ID x 230mm L

1шт.

b27

HX33L03088DX

HOSE

1шт.

b29

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

1шт.

b30

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

b31

HX33L03046DX

HOSE ASSY.

1шт.

b33

ZC16X01800

CLIP

1шт.

b37

HX33L03076DX

HOSE ASSY.

1шт.

b41

HX23L03105DX

HOSE,4.8mm ID x 1050mm L

1шт.

b42

2420Z2185

GROMMET

2шт.

b43

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

6шт.

Выбрано товаров: 39
