Запчасти Case CX27B BTW (01-035) - CONTROL LINES, REMOTE (NIBBLER &BREAKER) 2 OF 2 (PV68H00018F1) (35) - HYDRAULIC SYSTEMS

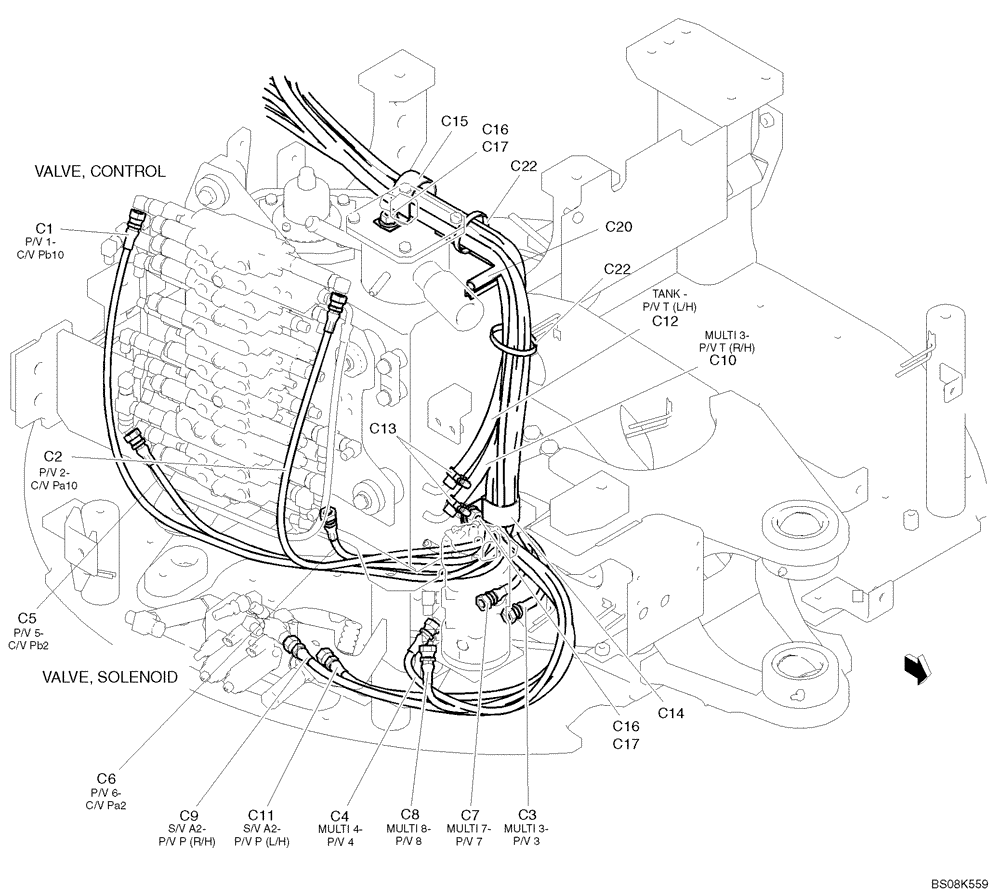

Схема запчастей Case CX27B BTW - (01-035) - CONTROL LINES, REMOTE (NIBBLER &BREAKER) 2 OF 2 (PV68H00018F1) (35) - HYDRAULIC SYSTEMS
c10
c20
c15
c22
c5
c12
c22
c2
c17
c1
c14
c13
c8
c17
c11
c9
c16
c3
c6
c4
c7
c16

Артикул

Название

Примечание

Количество

CONTROL LINES, MAIN, PV68H00018F1

1шт.

c1

HX33L03190DR

HOSE,4.8mm ID x 1900mm L

1шт.

c2

HX23L03165DB

HOSE,4.8mm ID x 1650mm L

1шт.

c3

HX33L03115DG

HOSE

1шт.

c4

HX23L03140DH

HOSE

1шт.

c5

HX23L03310DH

HOSE,4.8mm ID x 3100mm L

1шт.

c6

HX23L03280DR

HOSE,4.8mm ID x 2800mm L

1шт.

c7

HX23L03260DB

HOSE

1шт.

c8

HX23L03290DG

HYDRAULIC HOSE

HOSE

1шт.

c9

HX34L04155DX

HOSE,6.3mm ID x 1550mm L

1шт.

c10

PW68H01023D3

HOSE,9.5mm ID x 880mm L

1шт.

c11

HX24L04300DX

HOSE,6.3mm ID x 3000mm L

1шт.

c12

PW68H01023D8

HOSE,9.5mm ID x 2400mm L

1шт.

c13

ZC16X01800

CLIP

2шт.

c14

ZC46X38014

CLIP

1шт.

c15

ZC46X46014

CLIP

1шт.

c16

ZN18C12010

NUT

2шт.

c17

ZW16H12000

WASHER

2шт.

c20

YT21C01164DA

WEATHERSEAL STRIP

1шт.

c22

PY01P01043D8

CABLE TIE,102mm L

2шт.

Выбрано товаров: 20
