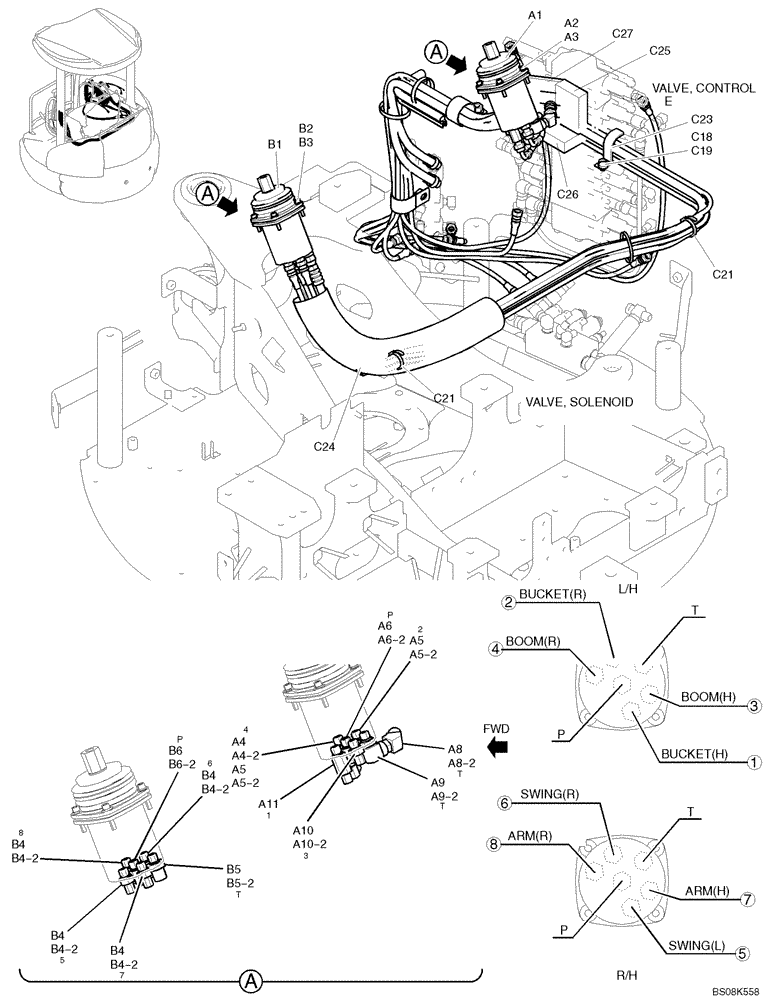

Запчасти Case CX27B BTW (01-034) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) 1 OF 2 (PW64H00037F1,PW64H00038F1, PV68H00018F1) (35) - HYDRAULIC SYSTEMS

(RIGHT SIDE STD) VALVE INSTAL, PW64H00037F1

1шт.

a1

PX30V00043F1

VALVE

Pilot; See Figure 07-036

1шт.

a2

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

Cap

4шт.

a3

ZW16X06000

WASHER

4шт.

a4

2444Z2525

HYD CONNECTOR

1шт.

a4-2

ZD12P01100

O-RING

1шт.

a5

HH35S04004G1

90 ELBOW

2шт.

a5-2

ZD12P01100

O-RING

2шт.

a6

HH25S04004G3

HYD CONNECTOR

1шт.

a6-2

ZD12P01100

O-RING

1шт.

a8

HH45S06004G1

45 ELBOW

1шт.

a8-2

ZD12P01400

O-RING

1шт.

a9

2444Z2894

90 ELBOW

1шт.

a9-2

ZD12P01100

O-RING

1шт.

a10

HH25S04004G1

HYD CONNECTOR

1шт.

a10-2

ZD12P01100

O-RING

1шт.

a11

PU64H01002P1

HYD CONNECTOR

1шт.

(LEFT SIDE STD) VALVE INSTAL, PW64H00038F1

1шт.

b1

PX30V00043F1

VALVE

Pilot; See Figure 07-036

1шт.

b2

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

Cap

4шт.

b3

ZW16X06000

WASHER

4шт.

b4

HH25S04004G1

HYD CONNECTOR

4шт.

b4-2

ZD12P01100

O-RING

4шт.

b5

HH25S06004G3

HYD CONNECTOR

1шт.

b5-2

ZD12P01100

O-RING

1шт.

b6

HH25S04004G3

HYD CONNECTOR

1шт.

b6-2

ZD12P01100

O-RING

1шт.

CONTROL LINES, MAIN, PV68H00018F1

1шт.

c18

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

1шт.

c19

ZW16H08000

WASHER

1шт.

c21

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

2шт.

c23

PW68H01041P1

CLAMP

1шт.

c24

PM68H01057P1

COVER

1шт.

c25

PM68H01054P1

FOAM INSULATION

1шт.

c26

PM68H01055P1

FOAM INSULATION

1шт.

c27

PH68H01042P1

RUBBER

1шт.
