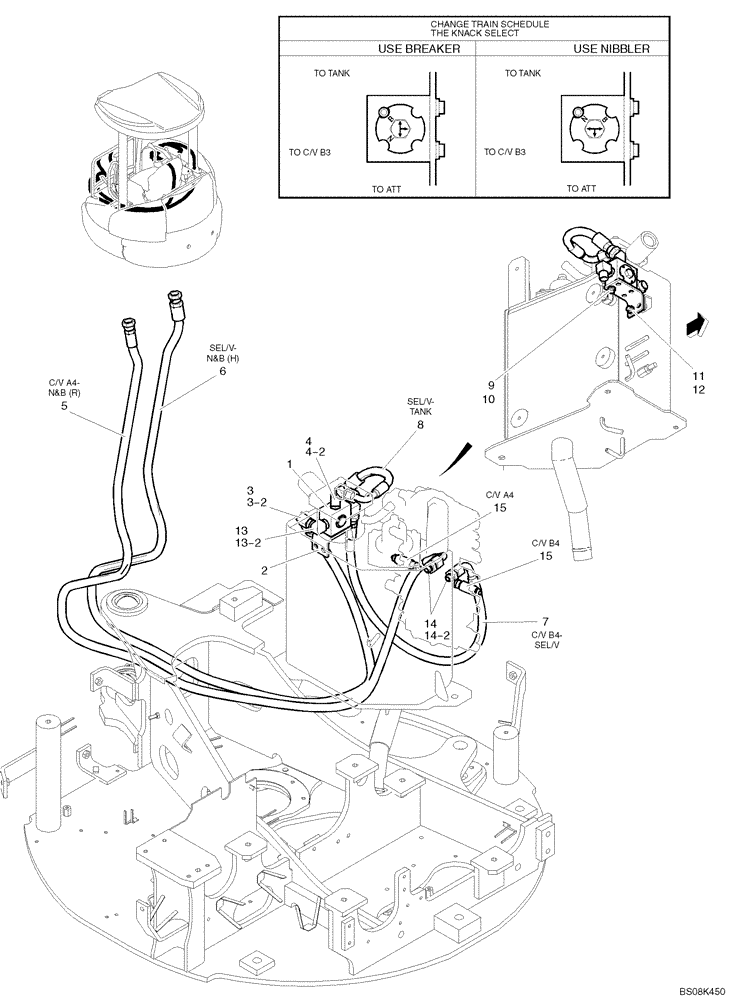

Запчасти Case CX27B BTW (01-025) - HYDRAULIC LINES, UPPER (NIBBLER & BREAKER) (PM03H00019F1) (35) - HYDRAULIC SYSTEMS

HYDRAULIC LINES, UPPER, PM03H00019F1

1шт.

1

PA30V00005F1

VALVE

Assy, Selector; See Figure 07-043

1шт.

2

PM03H01112P1

BRACKET

1шт.

3

HH35S08006G1

90 ELBOW

2шт.

3-2

ZD12P01400

O-RING

2шт.

4

HH45S08006G1

45 ELBOW

1шт.

4-2

ZD12P01400

O-RING

1шт.

5

PM03H01120D1

HOSE,12.7mm ID x 2550mm L

1шт.

6

PM03H01119D1

HOSE,12.7mm ID x 2630mm L

1шт.

7

HX35L08090DX

HOSE,12.7mm ID x 900mm L

1шт.

8

HX32L08034DX

HOSE,12.7mm ID x 340mm L

1шт.

9

ZS18C08020

SCREW,Hex, M8 x 20mm

4шт.

10

ZW16H08000

WASHER

4шт.

11

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

12

ZW16H10000

WASHER

2шт.

13

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

13-2

ZD12P01400

O-RING

1шт.

14

HH25S08006G2

HYD CONNECTOR

2шт.

14-2

ZD12P01400

O-RING

2шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

Assy; See Figure(s) 07-003, 07-012, 07-014, And 07-015

2шт.
