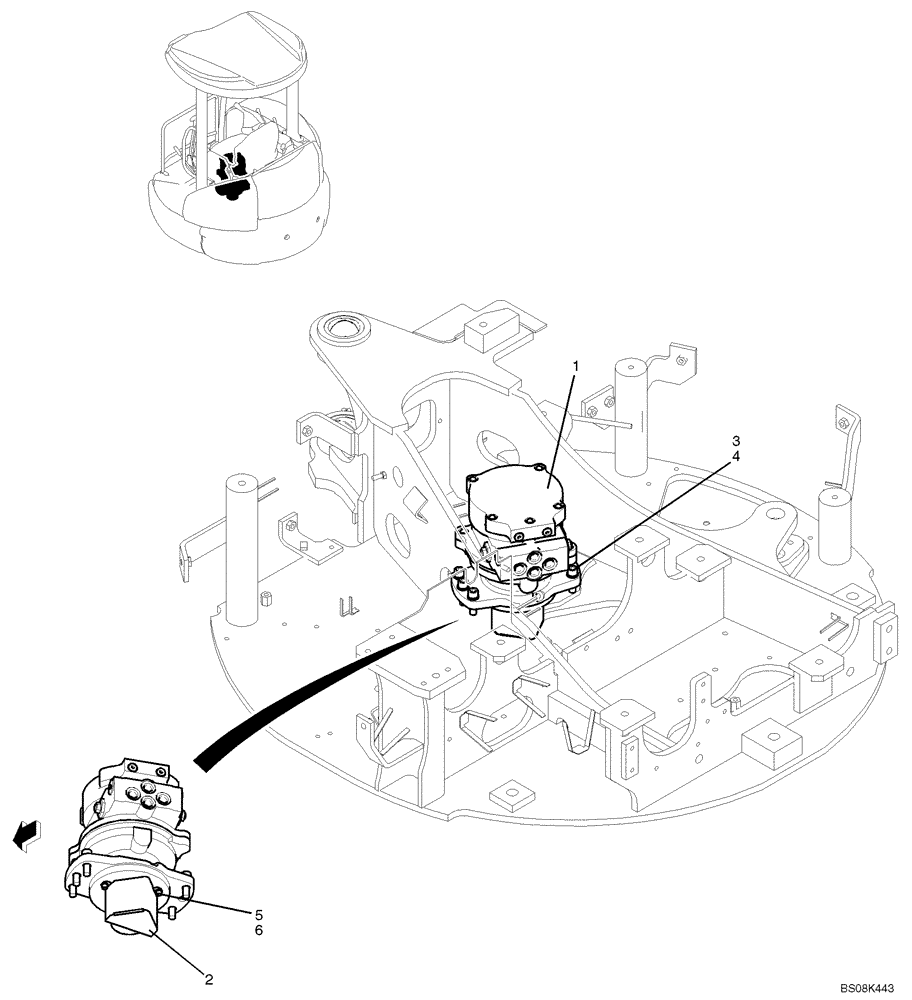

Запчасти Case CX27B BTW (01-019) - MOTOR INSTAL, SLEWING (PM32W00007F1) (35) - HYDRAULIC SYSTEMS

MOTOR INSTAL, SLEWING, PM32W00007F1

1шт.

1

PM15V00020F1

HYDRAULIC MOTOR

Assy, Hydraulic; See Figure 07-019

1шт.

2

PM32W01010P1

COVER

1шт.

3

ZW16H12000

WASHER

5шт.

4

ZS18C12040

SCREW,Hex, M12 x 40mm

Cap

5шт.

5

ZW16K06000

WASHER

Lock

2шт.

6

ZS28C06012

CAPSCREW,Hex Socket Head, M6 x 12mm

Cap

2шт.
