Запчасти Case CX27B BTW (01-015) - TANK ASSY HYDRAULICS (NIBBLER & BREAKER) (PM33H00037F1, PM33H00026F1) (35) - HYDRAULIC SYSTEMS

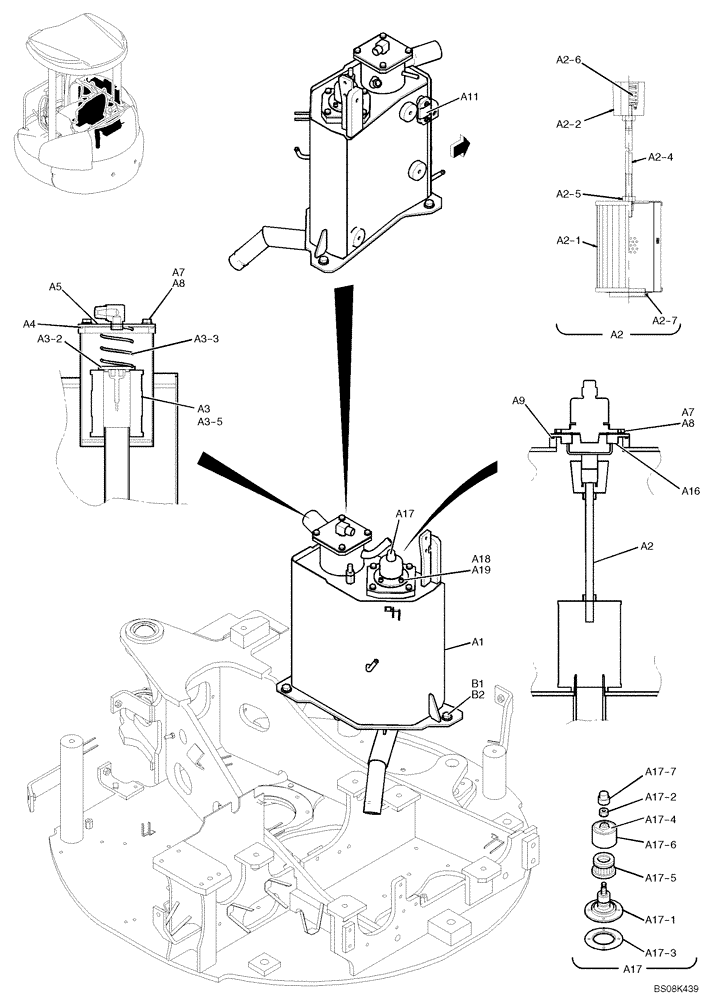

Схема запчастей Case CX27B BTW - (01-015) - TANK ASSY HYDRAULICS (NIBBLER & BREAKER) (PM33H00037F1, PM33H00026F1) (35) - HYDRAULIC SYSTEMS
a3-2
a17-3
a2-4
a17-6
a7
a17
a2-1
a11
a9
a16
a17-1
b2
a7
a1
a4
a2-7
a2
a5
a17-5
a3-5
a19
a17-4
a2-6
a18
a17-7
a3
a17-2
a3-3
a2-5
a8
a2
b1
a2-2
a8
a17

Артикул

Название

Примечание

Количество

.

TANK ASSY, HYDRAULIC, PM33H00037F1

1шт.

a1

PM33H00038P1

TANK

1шт.

a2

PW50V00015F2

STRAINER ASSY.

Assy, Suction

1шт.

a2-1

PM50V00017S001

FILTER STRAINER

1шт.

a2-2

2446R176S2

HOLDER

GUIDE

1шт.

a2-4

PW50V00015S004

BOLT

1шт.

a2-5

ZN11C10008

NUT

1шт.

a2-6

2446R176S5

SPRING

SPRING

2шт.

a2-7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

a3

PW50V00012F2

HYDRAULIC OIL FILTER

Filter Assy, Return

1шт.

a3-2

PW21V00004P1

VALVE

Check

1шт.

a3-3

YR52V01001S004

SPRING

1шт.

a3-5

YR52V01003P1

FILTER

Element

1шт.

a3-5a

PW50V00012R200

HYDRAULIC OIL FILTER

Include(s) Reference Items A3-5, A4

1шт.

a4

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

a5

PM33H01083P2

COVER

COVER

1шт.

a7

ZW26X08000

LOCK WASHER

Lock

8шт.

a8

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

8шт.

a9

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

a11

PE58S00001P1

GAUGE

Level

1шт.

a16

PW33H01144P1

COVER

1шт.

a17

YN57V00002F4

BREATHER ASSY.

1шт.

a17-1

2446U260S1

BODY

Assy

1шт.

a17-2

2446U260S5

NUT

1шт.

a17-3

2446U260S8

PACKING

1шт.

a17-4

YN57V00002S007

IDENTITY PLATE

Caution

1шт.

a17-5

YN57V00002S010

ELEMENT

1шт.

a17-6

YN57V00002S011

COVER

1шт.

a17-7

YN57V00002S012

CAP

1шт.

a18

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

4шт.

a19

ZW26K06000

LOCK WASHER

4шт.

.

TANK INSTAL, HYDRAULIC, PM33H00026F1

1шт.

b1

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

3шт.

b2

ZW16H12000

WASHER

3шт.

Выбрано товаров: 34
