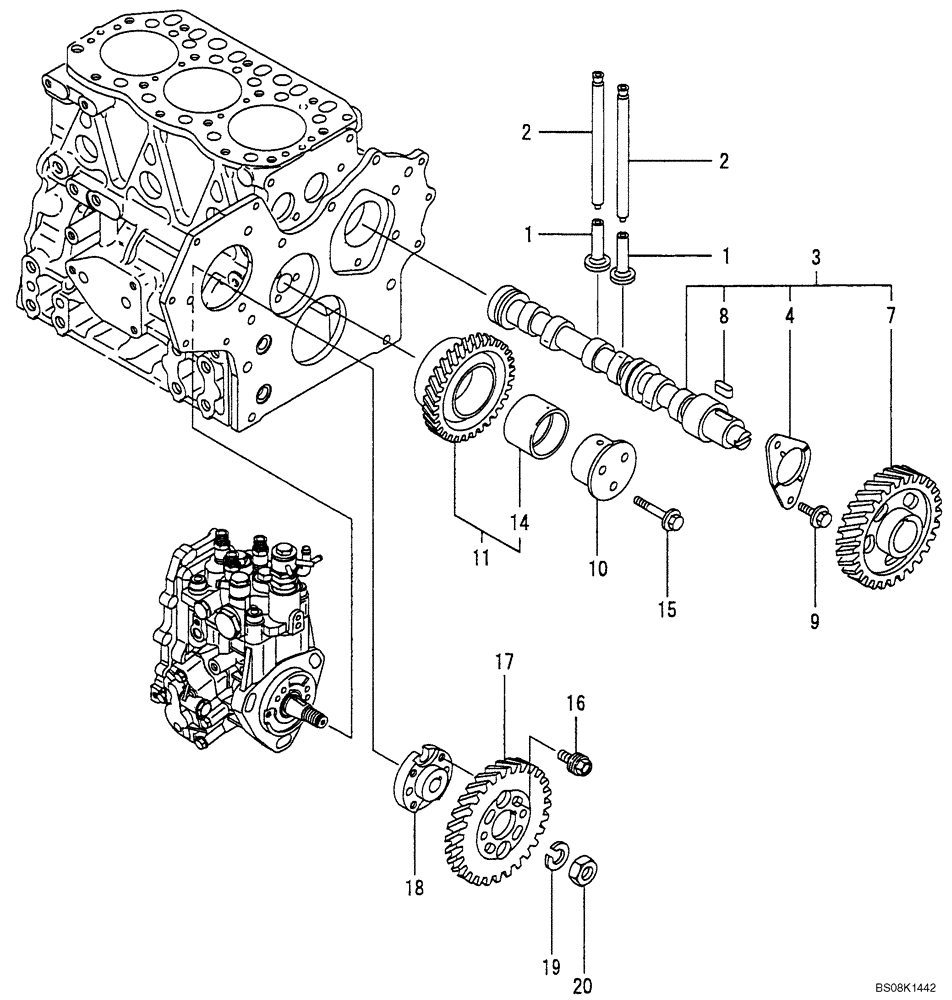

Запчасти Case CX27B BTW (08-007) - CAMSHAFT & DRIVING GEAR (10) - ENGINE

CAMSHAFT & DRIVING GEAR

1шт.

1

VV12915014200

TAPPET

6шт.

2

VV11981014400

PUSH ROD

6шт.

3

VV11980214580

CAMSHAFT

Assy

1шт.

4

VV12915002450

METAL LINER

Thrust (Cam)

1шт.

7

VV12915014101

GEAR SET

Camshaft

1шт.

8

VV22512070140

KEY,M7 x 14mm

7 x 14

1шт.

9

VV26106080142

BOLT,M8 x 14mm

M8 x 14 Plated

2шт.

10

VV11980225051

SHAFT

Idle Gear

1шт.

11

VV11980225100

GEAR

Assy, Idle

1шт.

14

VV11980225070

BUSHING

Idle Gear (1) Repair Part

1шт.

15

VV26106080402

BOLT,M8 x 40mm

M8 x 40 Plated

3шт.

16

VV12915025301

BOLT

FI-P

4шт.

17

VV11980225901

GEAR

Pump

1шт.

18

VV15855251151

FLANGE

1шт.

19

VV22217140000

SPRING WASHER

Washer 14

1шт.

20

VV26776140002

LOCK NUT,M14

M14 Plated

1шт.
