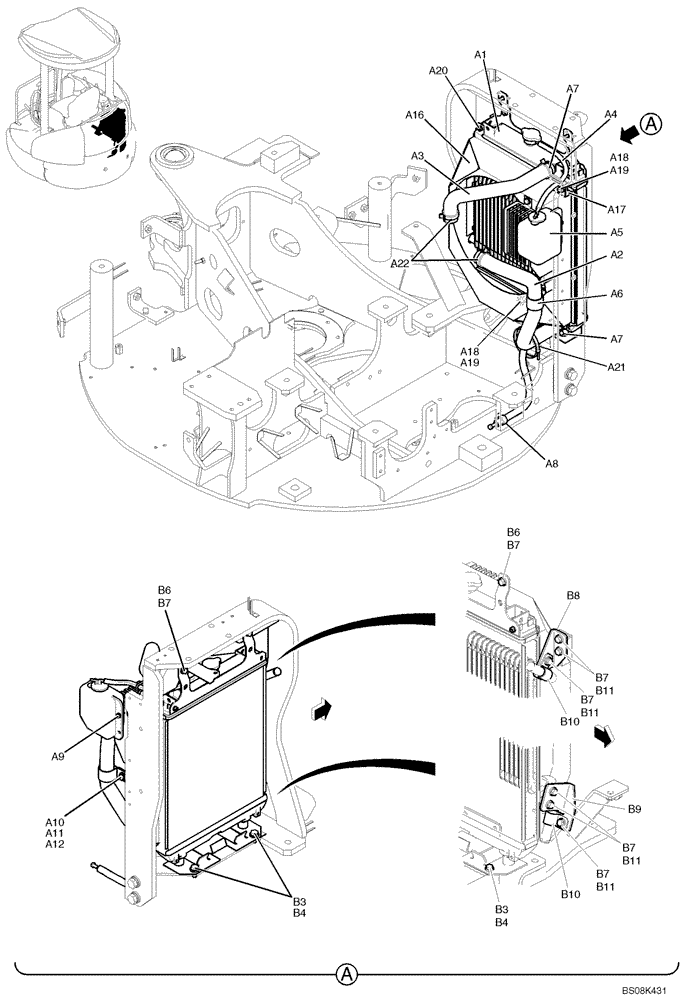

Запчасти Case CX27B BTW (01-006) - RADIATOR INSTAL (PM05P00014F1, PM05P00015F1) (10) - ENGINE

RADIATOR GROUP, PM05P00014F1

1шт.

a1

PM05P00016F1

RADIATOR

Assy, See Figure 01-007

1шт.

a2

PM05P01088P1

HOSE

Radiator

1шт.

a3

PM05P01087P1

HOSE

Radiator

1шт.

a4

NSS

NOT SOLD SEPARAT

Hose

1шт.

a5

PU01P01024F1

RESERVOIR

Tank Assy, Water, Sub

1шт.

a6

ZC46X38014

CLIP

1шт.

a7

PH05P01088D3

CLIP

2шт.

a8

NSS

NOT SOLD SEPARAT

Clip

2шт.

a9

ZM61C06020

BOLT

Sems

2шт.

a10

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

1шт.

a11

ZW26X08000

LOCK WASHER

Lock

1шт.

a12

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

1шт.

a16

PM05P01121F1

SHROUD ASSY.

Radiator, See Figure 01-007

1шт.

a17

PM05P01120P1

BRACKET

1шт.

a18

ZS18C08020

SCREW,Hex, M8 x 20mm

4шт.

a19

ZW16H08000

WASHER

4шт.

a20

ZM61C06016

BOLT

Sems

1шт.

a21

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

1шт.

a22

ZC16X03300

FASTENER

Clip

2шт.

RADIATOR INSTAL, PM05P00015F1

1шт.

b3

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

b4

ZW16H10000

WASHER

2шт.

b6

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

2шт.

b7

ZW16H08000

WASHER

8шт.

b8

PM05P01124P1

PLATE

1шт.

b9

PM05P01128P1

PLATE

1шт.

b10

PW05P01144P1

PLATE

2шт.

b11

ZS18C08020

SCREW,Hex, M8 x 20mm

6шт.
