(01-072) - KEY ASSY (PW03M01870F1, PW22T00112F1)

Запчасти Case CX27B BTW (01-072) - KEY ASSY (PW03M01870F1, PW22T00112F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

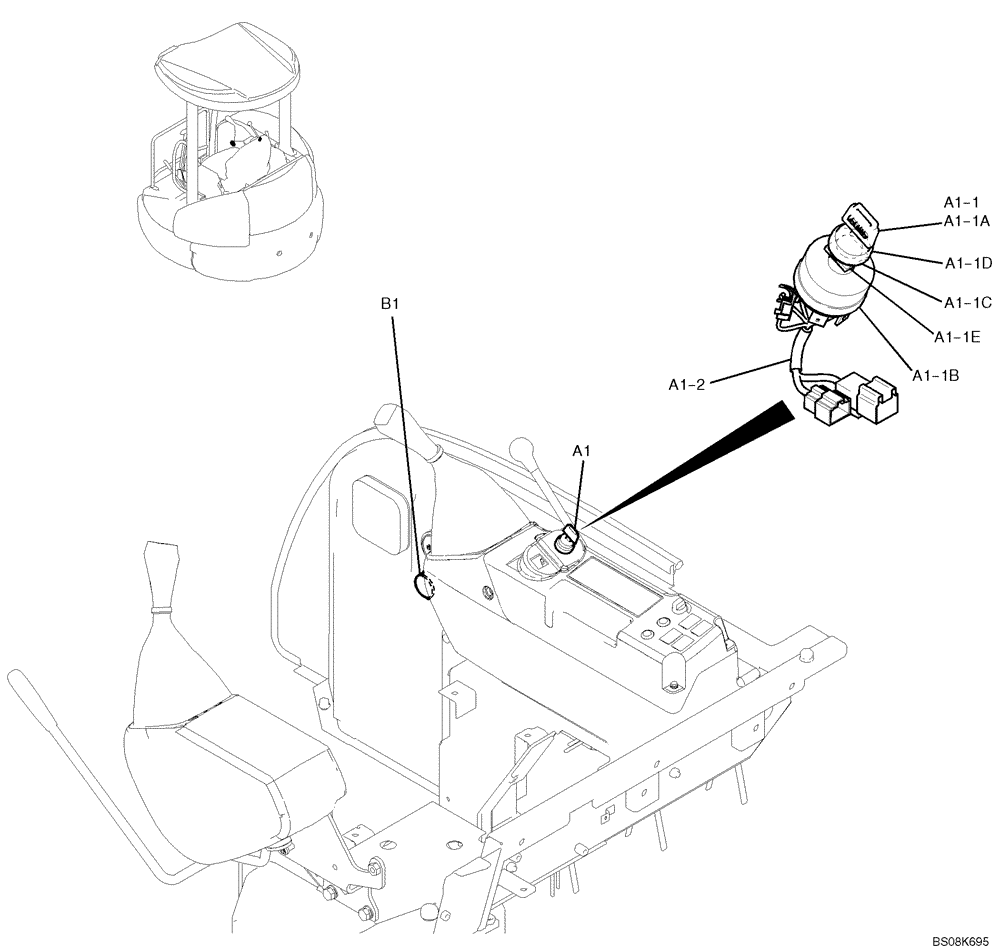

Схема запчастей Case CX27B BTW - (01-072) - KEY ASSY (PW03M01870F1, PW22T00112F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS
b1
a1-1b
a1-1c
a1-1e
a1-1
a1-1d
a1
a1-1a
a1-2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KEY ASSY, PW03M01870F1

1шт.

a1

PW50E00003F1

IGNITION SWITCH

1шт.

a1-1

PW50S00007F1

IGNITION SWITCH

Switch Assy

1шт.

a1-1a

PW50S00005S001

SWITCH

1шт.

a1-1b

PW50S00004S004

NUT

Assy

1шт.

a1-1c

YN50S00002S005

WASHER

1шт.

a1-1d

YN50S00002S003

WASHER

2шт.

a1-1e

PM50S01001P1

SET OF 2 KEYS

KEY, LOCK

1шт.

a1-2

PW50E01002P1

HARNESS

1шт.

NAME PLATE INSTAL, PW22T00112F1

1шт.

b1

PW03M01686P1

PLATE

1шт.
