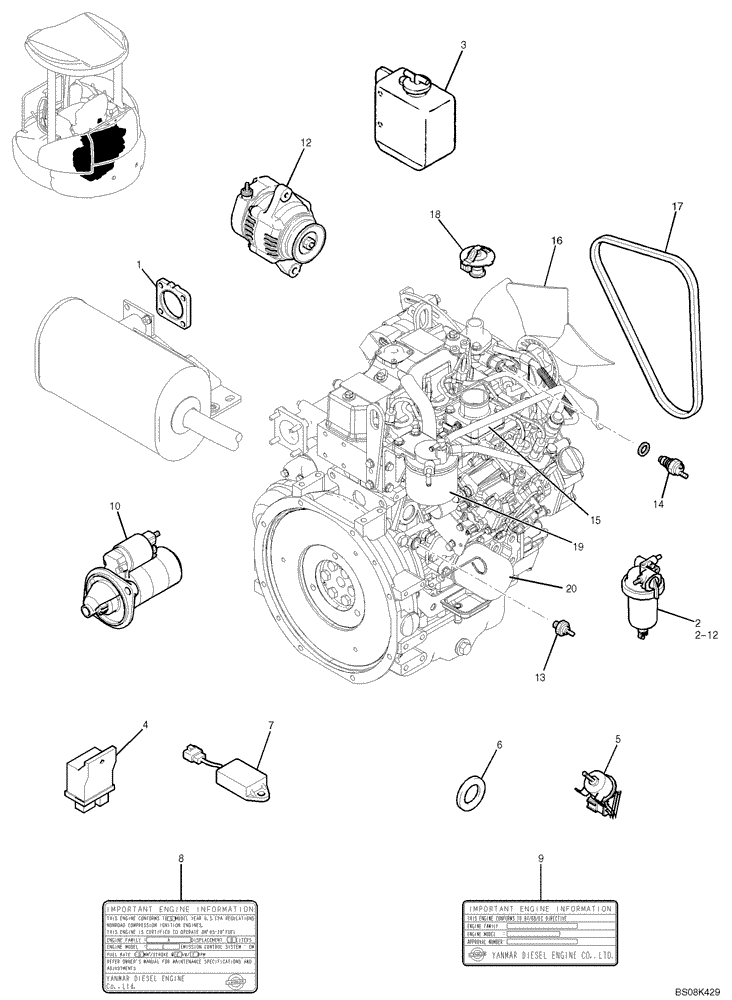

Запчасти Case CX27B BTW (01-004) - ENGINE ASSY (PM02P00016F1) (10) - ENGINE

.

ENGINE ASSY, PM02P00016F1

1шт.

1

PW12P01043P1

GASKET

1шт.

2

PH02P01056P1

SEPARATOR

Assy, Water

1шт.

3

PU01P01024F1

RESERVOIR

Tank Assy, Water, Sub

1шт.

4

PX24S00001P1

RELAY

1шт.

5

PW22P00001P1

FUEL PUMP

1шт.

6

PA13E01027P1

PACKING

1шт.

7

PH25S00002P1

TIMER

1шт.

8

PY20T01087P1

LABEL

1шт.

9

PX20T01008P1

DECAL

LABEL

1шт.

.

REF

INSTRUCTION

Yanmar Diesel Parts Listed Below

1шт.

1

VV12900413200

GASKET

1шт.

2

VV11980255700

SEPARATOR

Assy, Water

1шт.

2-12

VV11980255710

FILTER STRAINER

Water Separator

1шт.

3

VV12146844510

TANK

Assy, Water, Sub

1шт.

4

VV11980277200

RELAY

1шт.

5

VV12961252100

FUEL PUMP,12V, 1.5A

1шт.

6

VV12915049360

PACKING

1шт.

7

VV12921177920

TIMER

1шт.

8

VV11982207731

LABEL

1шт.

9

VV11994007250

LABEL

1шт.

10

VV12924277010

STARTER MOTOR

Assy

1шт.

12

VV12942377200

ALTERNATOR

1шт.

13

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

Engine Oil

1шт.

14

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

Thermo

1шт.

15

VV12912077501

HEATER

1шт.

16

VV11926544740

FAN

1шт.

17

VV12921142290

V-BELT

1шт.

18

VV12915549801

THERMOSTAT

1шт.

19

VV11980255800

FUEL FILTER

1шт.

20

VV12915035152

ENGINE OIL FILTER

Oil

1шт.
