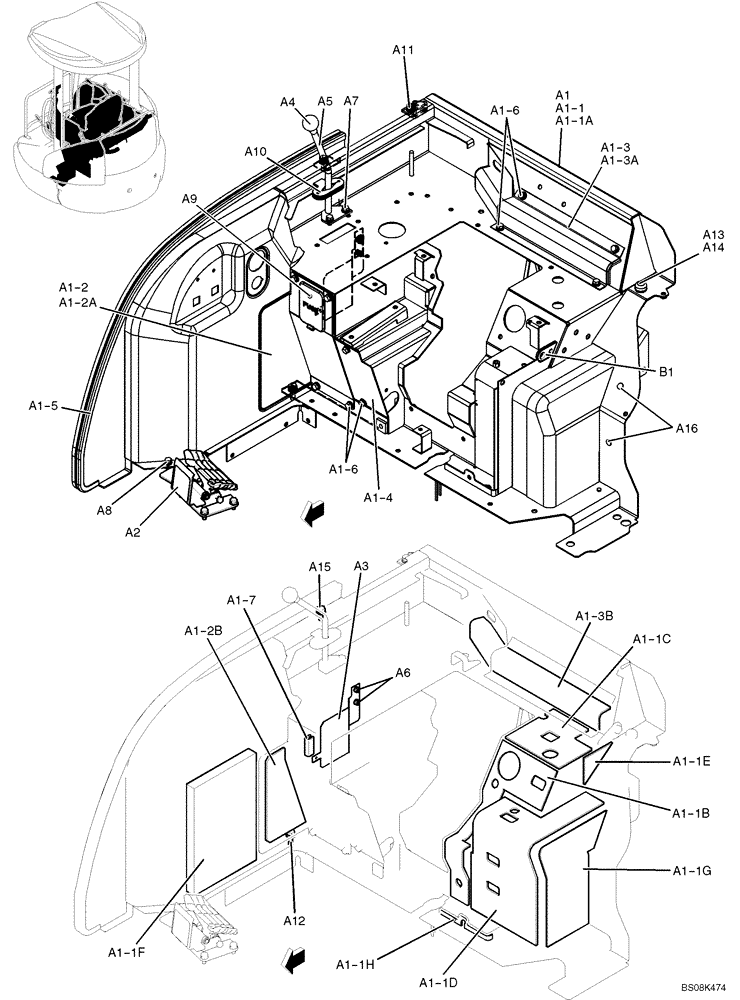

Запчасти Case CX27B BTW (01-032) - STAND ASSY, CONTROL (CAB) (PM03M00059F1, PW03M01716F1) (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

CONTROLS, OPERATORS, PM03M00059F1

1шт.

a1

PM10M00005F1

STAND, Assy Control

1шт.

a1-1

PM10M01269F1

STAND, Assy

1шт.

a1-1a

PM10M01265P1

STAND

1шт.

a1-1b

PM10M01149P1

FOAM INSULATION

1шт.

a1-1c

PM10M01191P1

FOAM INSULATION

1шт.

a1-1d

PM10M01151P1

FOAM INSULATION

1шт.

a1-1e

PM10M01065P1

FOAM INSULATION

1шт.

a1-1f

PM10M01187P1

FOAM INSULATION

1шт.

a1-1g

PH10M01045P1

FOAM INSULATION

1шт.

a1-1h

PM10M01247P1

GASKET

1шт.

a1-2

PM03M01679F1

COVER ASSY

1шт.

a1-2a

PM03M01628P1

COVER

1шт.

a1-2b

PM03M01680P1

FOAM INSULATION

1шт.

a1-3

PM03M01622F1

COVER ASSY

1шт.

a1-3a

PM03M01623P1

COVER

1шт.

a1-3b

PM03M01624P2

RUBBER

1шт.

a1-4

PM03M01681P1

COVER

1шт.

a1-5

PM21C01573D1

WEATHERSEAL STRIP

1шт.

a1-6

PA03M01093D2

BOLT

Sems

10шт.

a1-7

PM22C01020DR

TRIM PANEL

1шт.

a2

PM55M00019F1

PEDAL INSTAL

1шт.

a3

PM03M01705P1

COVER

1шт.

a4

PV03M01043P1

HANDLE GRIP

1шт.

a5

PW03M01624P1

LEVER

1шт.

a6

ZM61C06012

BOLT

Sems

2шт.

a7

ZM22C08016

BOLT

Sems

2шт.

a8

ZM22C08020

BOLT

Sems

1шт.

a9

PW03M01543P1

GROMMET

1шт.

a10

PW03M01924P1

GROMMET

1шт.

a11

ZM22C10020

BOLT

Sems

1шт.

a12

ZM22C10030

BOLT

Sems

1шт.

a13

ZM22C12050

BOLT (STEP)

Sems

1шт.

a14

PW03M01557P1

CAP

1шт.

a15

ZM22C10025

BOLT

Sems

1шт.

a16

PV02B01073D2

CAP

2шт.

.

GROMMET ASSY, PW03M01716F1

1шт.

b1

PW03M01712P1

GROMMET

1шт.
