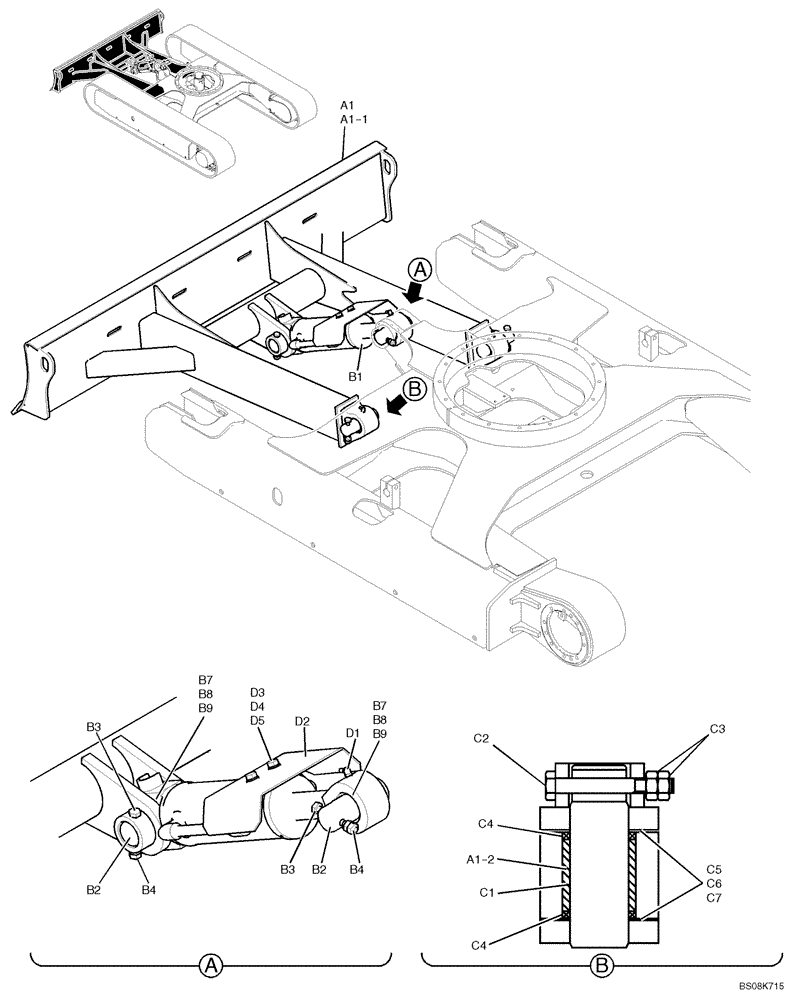

Запчасти Case CX27B BTW (02-011) - DOZER ASSY (PV51B00059F1,PV51B00055F1, PW51B00028F1, PX51B00072F1) (86) - DOZER

DOZER ASSY, PV51B00059F1

1шт.

a1

PV51B00060F1

DOZER BLADE

Assy

1шт.

a1-1

PV51B00065P1

DOZER

1шт.

a1-2

PW51B01039P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

CYLINDER INSTAL, PV51B00055F1

1шт.

b1

PV01V00047F2

HYDRAULIC CYLINDER

Assy, Dozer; See Figure 07-034

1шт.

b2

PW51B01029P1

PIN

2шт.

b3

ZS18C10085

SCREW,Hex, M10 x 85mm

Cap

2шт.

b4

ZN18C10008

NUT

4шт.

b7

B16T0442D64

SHIM,70mm OD x 47mm ID x 1.2mm Thk

2шт.

b8

B16T0442D65

SHIM,70mm OD x 47mm ID x 1.6mm Thk

2шт.

b9

B16T0442D66

SHIM,70mm OD x 47mm ID x 2.3mm Thk

2шт.

DOZER INSTAL, PW51B00028F1

1шт.

c1

PW51B01028P1

PIN,40mm OD x 127mm L

2шт.

c2

ZS18C10080

SCREW,Hex, M10 x 80mm

Cap

2шт.

c3

ZN18C10008

NUT

4шт.

c4

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

4шт.

c5

B16T0442D67

SHIM,65mm OD x 42mm ID x 1.2mm Thk

2шт.

c6

B16T0442D68

SHIM,65mm OD x 42mm ID x 1.6mm Thk

2шт.

c7

B16T0442D69

SHIM,65mm OD x 42mm ID x 2.3mm Thk

2шт.

DOZER GROUP, PX51B00072F1

1шт.

d1

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

2шт.

d2

PX51B01081P1

COVER

1шт.

d3

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

2шт.

d4

ZW16X10000

WASHER

2шт.

d5

ZW26X10000

LOCK WASHER

2шт.
