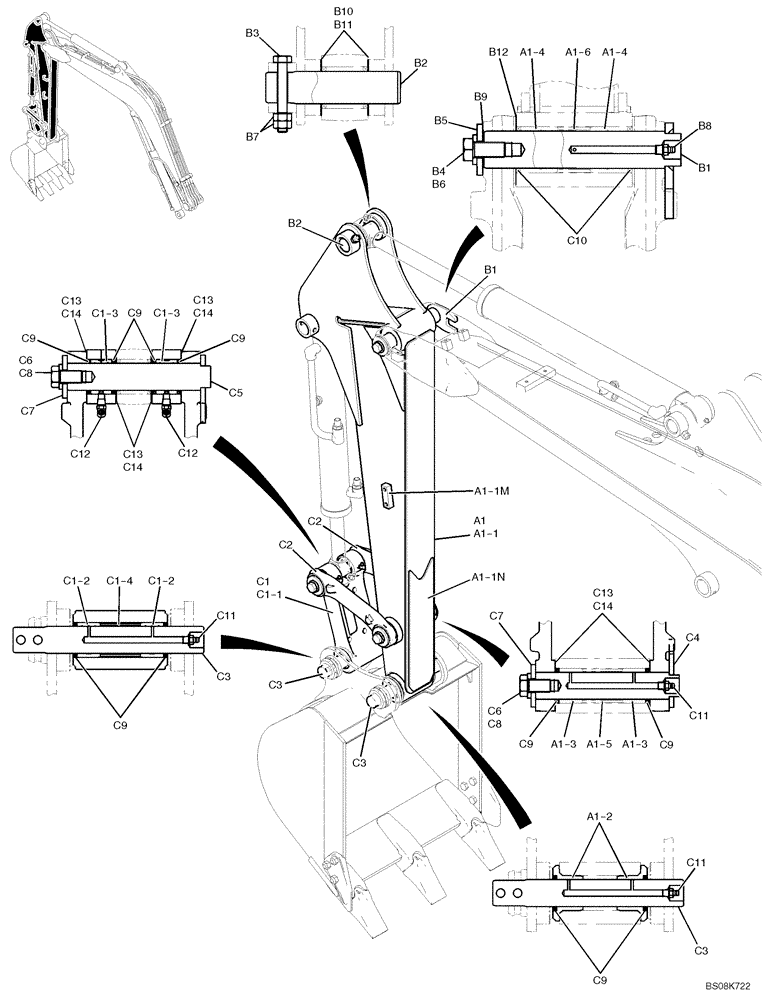

Запчасти Case CX27B BTW (03-007) - ARM ASSY 1.12 M (REINFORCE TYPE) (PV12B00101F1, PV12B00120F1, PM12B00137F1) (84) - BOOMS, DIPPERS & BUCKETS

ARM ASSY, PV12B00101F1

1шт.

a1

PV12B00124F1

ARM Assy

1шт.

a1-1

NSS

NOT SOLD SEPARAT

Arm

1шт.

a1-1m

PV12B01227P1

BLOCK

Tapped

2шт.

a1-1n

PV12B01237P1

PLATE

1шт.

a1-2

PM12B01258P1

BUSHING,35mm ID x 72mm OD x 39mm L

2шт.

a1-3

PM12B01229P1

BUSHING,35mm ID x 45mm OD x 30mm L

2шт.

a1-4

PM12B01394P1

BUSHING

2шт.

a1-5

PV12B01068P1

BUSHING,37.5mm ID x 42.7mm OD x 52mm L

1шт.

a1-6

PM12B01262P1

COLLAR

1шт.

ARM INSTAL, PV12B00120F1

1шт.

b1

PM12B01383P1

PIN

1шт.

b2

PM02B01321P1

PIN,40mm OD x 138mm L

1шт.

b3

HS18C10080G3

BOLT

Cap

1шт.

b4

ZS18C16035

SCREW,Hex, M16 x 35mm

Cap

1шт.

b5

PM12B01226P1

WASHER

1шт.

b6

ZW16H16000

WASHER

1шт.

b7

ZN18C10008

NUT

2шт.

b8

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

b9

PB12B01013D1

SHIM

0.5

3шт.

b10

PR02B01123D1

SHIM,0.9mm Thk

0.5

1шт.

b11

PR02B01107P1

SHIM,0.5mm Thk

0.9

2шт.

b12

PM12B01250P1

SHIM,0.5mm Thk

0.5

1шт.

ARM GROUP, PM12B00137F1

1шт.

c1

PM12B01384F1

LINK

LINK Assy, Bucket

1шт.

c1-1

PM12B01385P1

LINK, Bucket

1шт.

c1-2

PM12B01229P1

BUSHING,35mm ID x 45mm OD x 30mm L

2шт.

c1-3

PM12B01340P1

BUSHING,35mm ID x 45mm OD x 27.5mm L

2шт.

c1-4

PV12B01068P1

BUSHING,37.5mm ID x 42.7mm OD x 52mm L

1шт.

c2

PM12B01366P1

LINK

2шт.

c3

PM12B01370P1

PIN

2шт.

c4

PM12B01321P1

PIN,35mm OD x 178.5mm L

1шт.

c5

PM12B01350P1

PIN

1шт.

c6

ZS18C16030

SCREW,Hex, M16 x 30mm

Cap

2шт.

c7

PM12B01226P1

WASHER

2шт.

c8

ZW16H16000

WASHER

2шт.

c9

PN54D01001D2

SEAL,35mm ID x 45mm OD x 4mm Thk

Dust

10шт.

c10

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

2шт.

c11

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

3шт.

c12

ZG91U02000

LUBE NIPPLE

2шт.

c13

PR02B01109P1

SHIM,0.5mm Thk

4шт.

c14

PR02B01122D1

SHIM,0.9mm Thk

4шт.
