(03-001) - BOOM ASSY, STD 2.15M (PV02B00178F1, PM02B00163F1, PV02B00183F1)

Запчасти Case CX27B BTW (03-001) - BOOM ASSY, STD 2.15M (PV02B00178F1, PM02B00163F1, PV02B00183F1) (84) - BOOMS, DIPPERS & BUCKETS

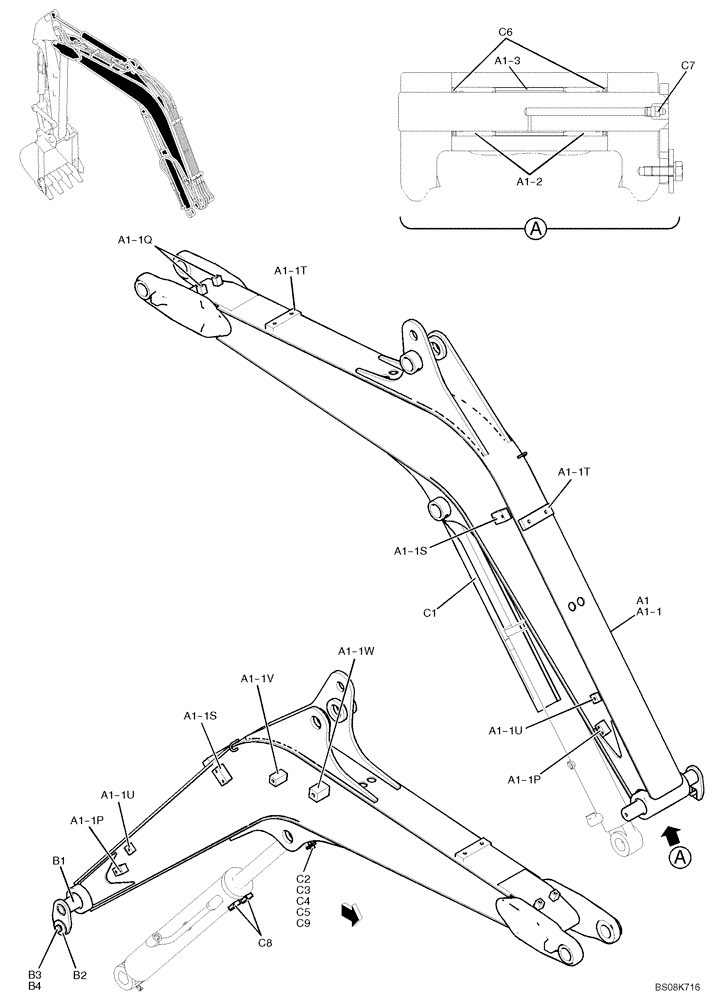

Схема запчастей Case CX27B BTW - (03-001) - BOOM ASSY, STD 2.15M (PV02B00178F1, PM02B00163F1, PV02B00183F1) (84) - BOOMS, DIPPERS & BUCKETS
c3
c8
a1-2
b2
a1-1q
a1-1p
a1-1t
b4
a1-1u
a1-1
c2
a1-1s
c7
a1-3
c4
c1
a1-1t
a1-1p
a1
a1-1v
c5
a1-1u
b3
a1-1w
c6
a1-1s
c9
b1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

BOOM ASSY, PV02B00178F1

1шт.

a1

PV02B00188F1

BOOM, Assy, Hoe

1шт.

a1-1

NSS

NOT SOLD SEPARAT

Boom Hoe

1шт.

a1-1p

PW02B01260P1

BLOCK

Tapped

2шт.

a1-1q

PM02B01253P1

BLOCK

Tapped

2шт.

a1-1s

PH12B01113P1

BLOCK

Tapped

2шт.

a1-1t

PM02B01266P1

BLOCK

Tapped

2шт.

a1-1u

PR02B01058P1

BLOCK

Tapped

2шт.

a1-1v

R16T0184D5

BLOCK

Tapped

1шт.

a1-1w

R16T0373D7

BLOCK

BLOCK, Tapped

1шт.

a1-2

PM12B01394P1

BUSHING

2шт.

a1-3

PM02B01255P1

COLLAR

1шт.

BOOM INSTAL, PM02B00163F1

1шт.

b1

PM02B01409P1

PIN

1шт.

b2

2418T21137

WASHER

1шт.

b3

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

b4

ZW26X10000

LOCK WASHER

1шт.

BOOM GROUP, PV02B00183F1

1шт.

c1

PM02B01376P1

COVER

1шт.

c2

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

1шт.

c3

ZW26X10000

LOCK WASHER

1шт.

c4

ZW16H10000

WASHER

1шт.

c5

PN03M01009D2

WASHER

1шт.

c6

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

2шт.

c7

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

c8

PH02B01004P1

TUBE

2шт.

c9

PV02B01297P1

SPACER

1шт.
