(01-078) - HARNESS ASSY (PRPORTIONAL) 1 OF 2 (PH11E00021F1)

Запчасти Case CX27B BTW (01-078) - HARNESS ASSY (PRPORTIONAL) 1 OF 2 (PH11E00021F1) (55) - ELECTRICAL SYSTEMS

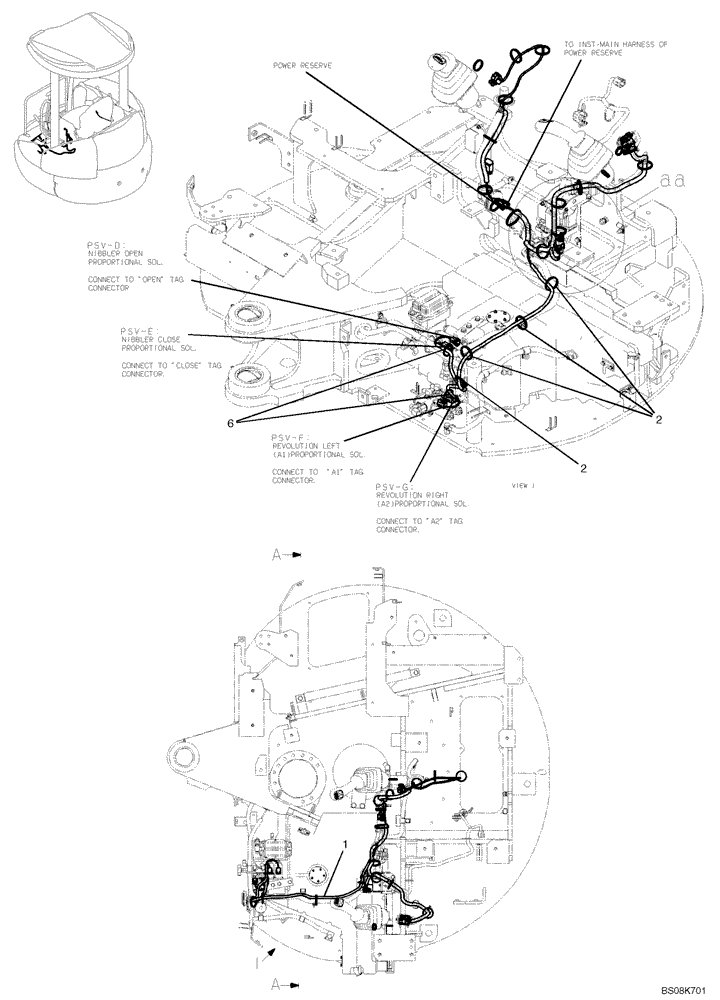

Схема запчастей Case CX27B BTW - (01-078) - HARNESS ASSY (PRPORTIONAL) 1 OF 2 (PH11E00021F1) (55) - ELECTRICAL SYSTEMS
6
2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HARNESS ASSY, PH11E00021F1

1шт.

1

PH14E01041P1

HARNESS

HARNESS

1шт.

2

PY01P01043D3

CABLE TIE,188mm L

4шт.

6

PY01P01043DA

CABLE TIE,2.50mm W x 205mm L

CLIP

2шт.

Выбрано товаров: 4
