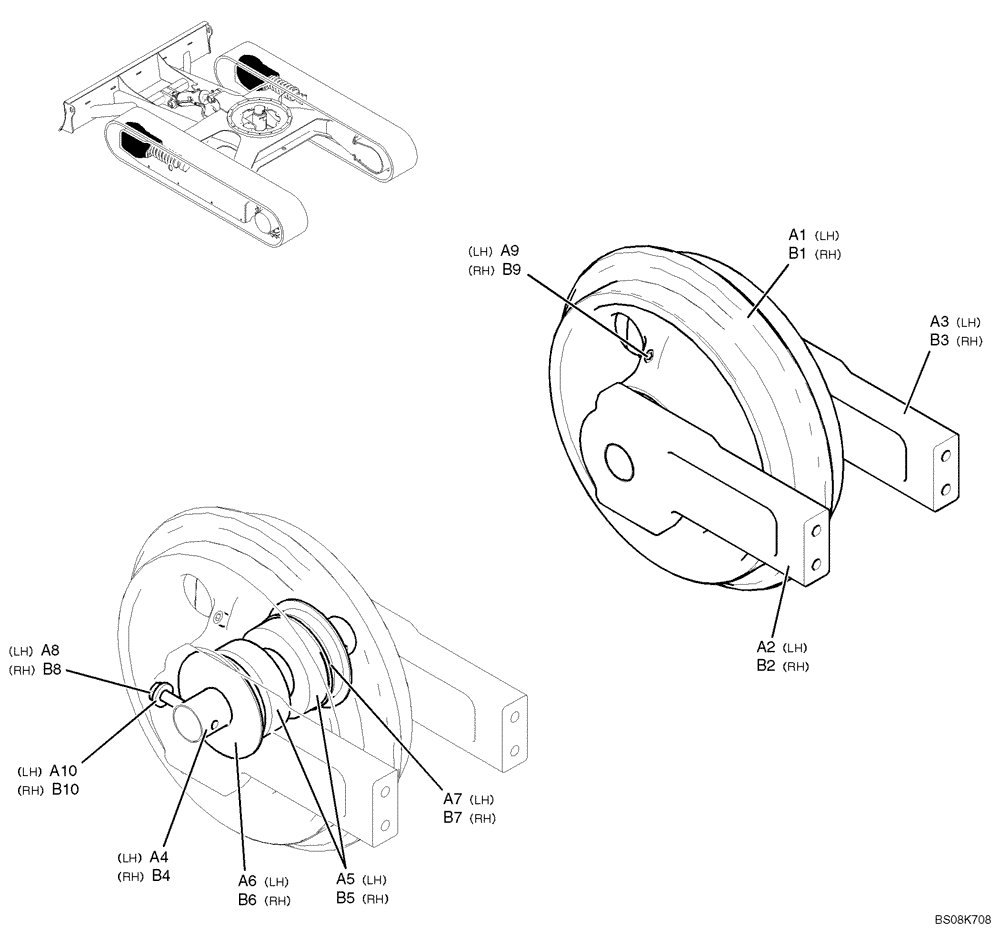

Запчасти Case CX27B BTW (02-004) - IDLER ASSY (PV52D00013F1, PV52D00014F1) (48) - TRACKS & TRACK SUSPENSION

PV52D00013F1

IDLER,271mm OD x 461mm W

IDLER ASSY LH, PV52D00013F1

1шт.

a1

PV52D00008P1

IDLER

1шт.

a2

PV52D01014P1

COLLAR

1шт.

a3

PV52D01015P1

COLLAR

1шт.

a4

PV52D01010P1

SHAFT

1шт.

a5

PV64D01005P1

BEARING

2шт.

a6

PW64D01013P1

SEAL,30mm ID x 85mm OD x 21mm Thk

2шт.

a7

ZR26X07200

SNAP RING

1шт.

a8

PV52D01011P1

SCREW

Cap

2шт.

a9

PV52D01007P1

PLUG

1шт.

a10

ZW16H08000

WASHER

2шт.

IDLER ASSY RH, PV52D00014F1

1шт.

b1

PV52D00008P1

IDLER

1шт.

b2

PV52D01014P1

COLLAR

1шт.

b3

PV52D01015P1

COLLAR

1шт.

b4

PV52D01010P1

SHAFT

1шт.

b5

PV64D01005P1

BEARING

2шт.

b6

PW64D01013P1

SEAL,30mm ID x 85mm OD x 21mm Thk

2шт.

b7

ZR26X07200

SNAP RING

1шт.

b8

PV52D01011P1

SCREW

Cap

2шт.

b9

PV52D01007P1

PLUG

1шт.

b10

ZW16H08000

WASHER

2шт.
