(05-001) - COUNTERWEIGHT INSTAL (GAIN) (PM60C00023F2)

Запчасти Case CX27B BTW (05-001) - COUNTERWEIGHT INSTAL (GAIN) (PM60C00023F2) (39) - FRAMES AND BALLASTING

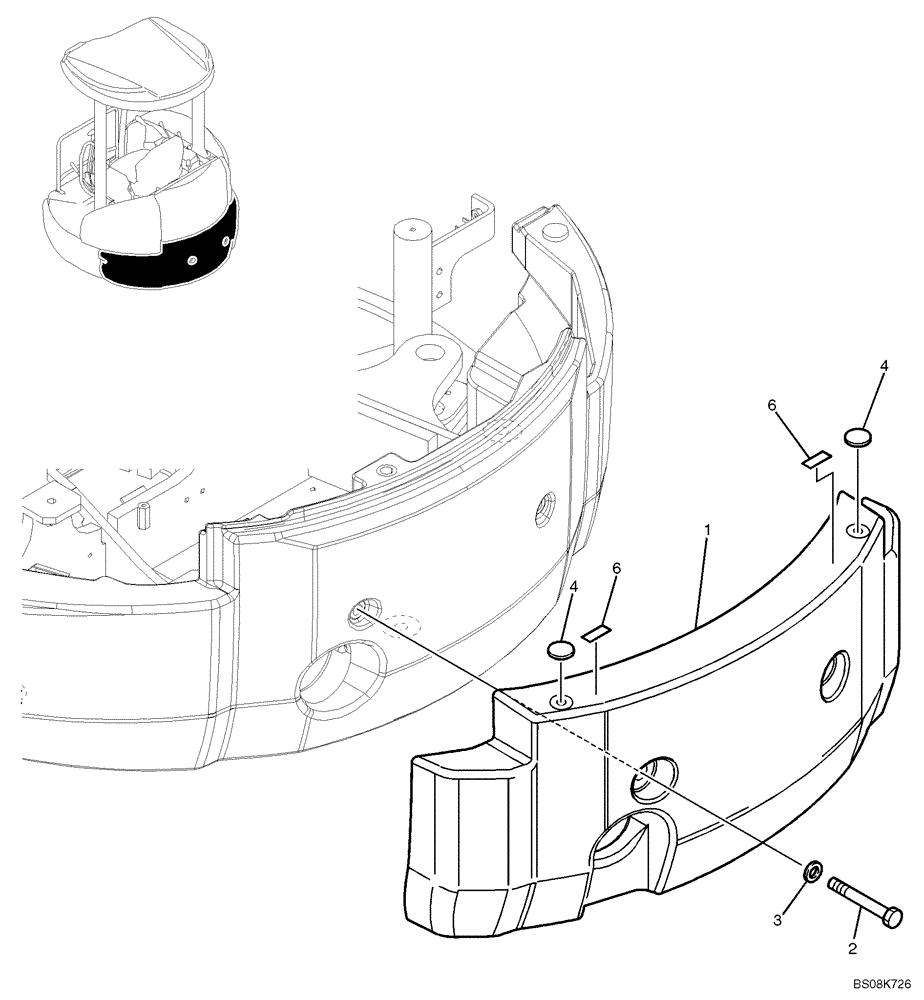

Схема запчастей Case CX27B BTW - (05-001) - COUNTERWEIGHT INSTAL (GAIN) (PM60C00023F2) (39) - FRAMES AND BALLASTING
4
3
4
6
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

(GAIN) COUNTERWEIGHT INSTAL, PM60C00023F2

1шт.

1

PM60C00022P1

COUNTERWEIGHT

1шт.

2

HS18C20110G1

SCREW

Cap

2шт.

3

HY26Y21050G4

WASHER

2шт.

4

LE60C01028P1

PLATE

2шт.

6

YN20T01221P1

DANGER DECAL

2шт.
